Does STM32C071CBT6 support PLL for external oscillator?

[curiocity]

I am using an 8 MHz external oscillator and was planning to use a PLL to increase the system frequency. However, when I open the Clock Configuration tab in CubeMX, I don’t see any option for a PLL.

I’ve also shared a screenshot of the clock configuration where it’s clear that the PLL option is not available.

So my question is: Does the STM32C071CBT6 microcontroller support PLL with an external oscillator?

[Andrew Neil]

What makes you think the STM32C071CBT6 has a PLL?

There is no mention in the Datasheet

That would explain why CubeMX doesn't show it

[Andrew Neil]

---

@Andrew Neil wrote:

There is no mention in the Datasheet

---

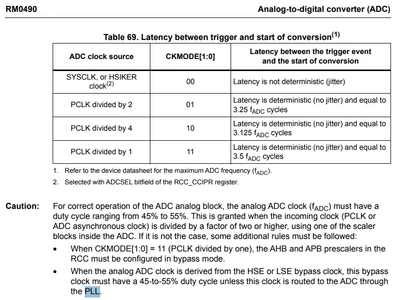

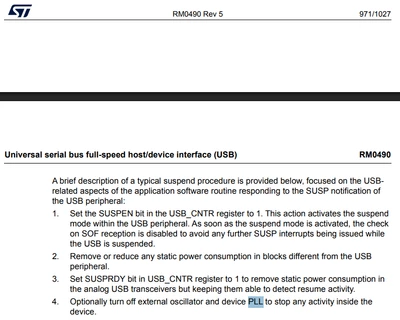

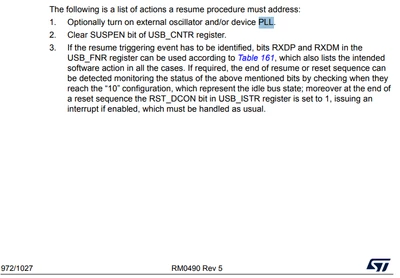

however, there are three mentions in the Reference Manual:

https://www.st.com/resource/en/reference_manual/rm0490-stm32c0-series-advanced-armbased-32bit-mcus-stmicroelectronics.pdf

via: https://www.st.com/en/microcontrollers-microprocessors/stm32c071cb.html#documentation



@STTwo-32 These look like copy-paste errors in the RM ?



[STTwo-32]

Hello @Andrew Neil

I've escalated this to the doc team for review (under internal ticket number 212567).

Best Regards.

STTwo-32
