H743BI: Can't setup CPU clocks above 200 MHz

  • May 11, 2023
  • 2 replies
  • 1133 views

Hi,

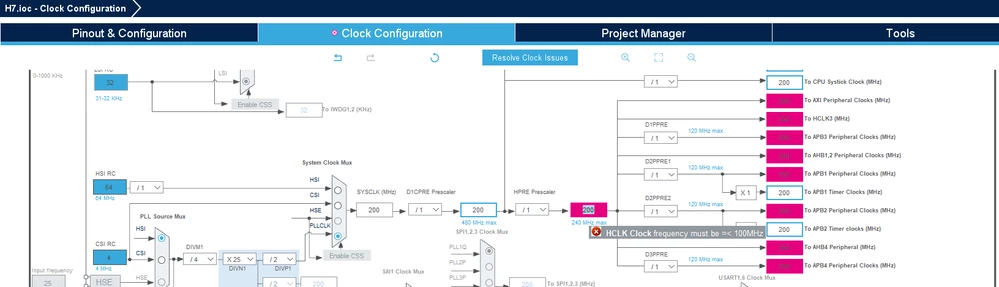

try setup clock above 200 Mhz (try for revision Y and V) and get error:

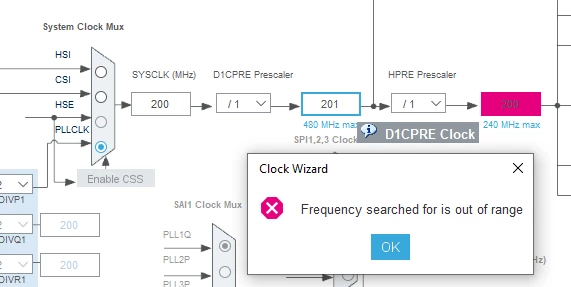

Error has occured also if you try set D1PRE set above 200 Mhz:



This topic has been closed for replies.
Best answer by Foued_KH

Hello @kamil Duljas​ ,

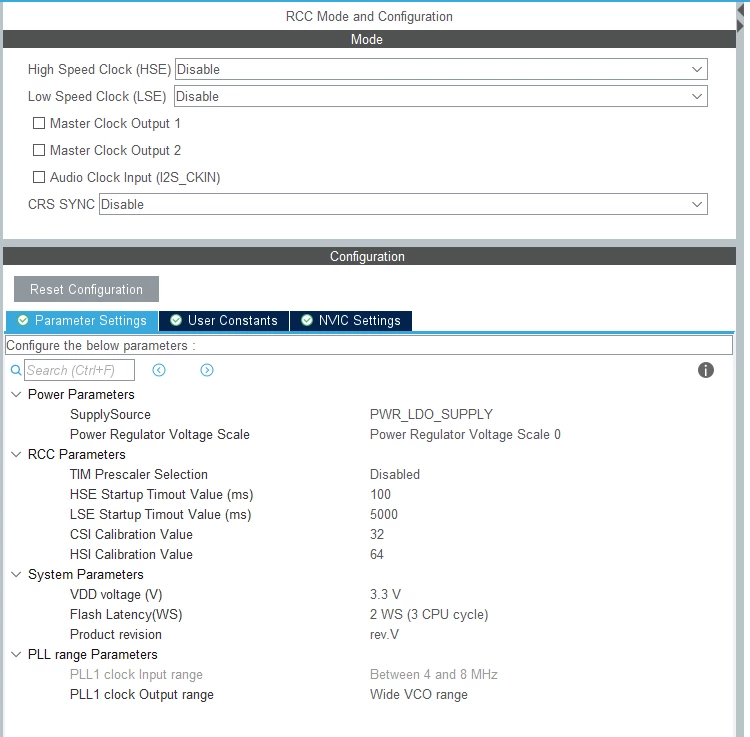

You can try :

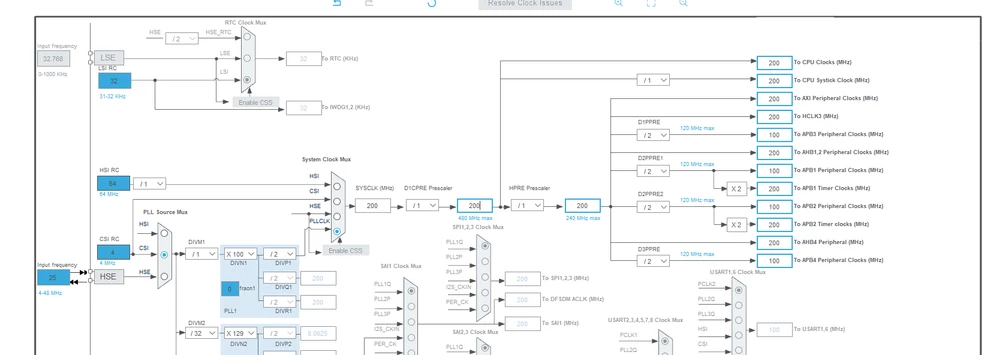

_legacyfs_online_stmicro_images_0693W00000bjrD6QAI.pngIt's fine now :



Foued

2 replies

Foued_KH
Foued_KHBest answer
ST Employee
May 11, 2023

Hello @kamil Duljas​ ,

You can try :


_legacyfs_online_stmicro_images_0693W00000bjrD6QAI.pngIt's fine now :



Foued

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
K
Kamil DuljasAuthor
Senior III
May 11, 2023

Ok , thanks. It is not intuitve enough.
