How to set STM32H755 sysclk to 480MHz?

[Junde]

Hi there,

According to the STM32H755 datasheet, the Cortex-M7 frequency can reach up to 480MHz.

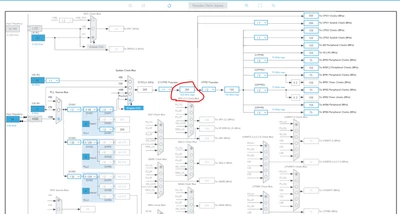

However, when I configure the sysclk in STM32CubeMX, it shows the maximum frequency is 300MHz.

What's wrong with my config? Or is there any misunderstanding by me?

Thanks for your help!





[NesrynELMK]

Hello @judet



 Please take a look at this article : How to reach 480MHz for STM32H7xx MCUs - STMicroelectronics Community

Kind regards,

[Imen.D]

Hello @Junde ,

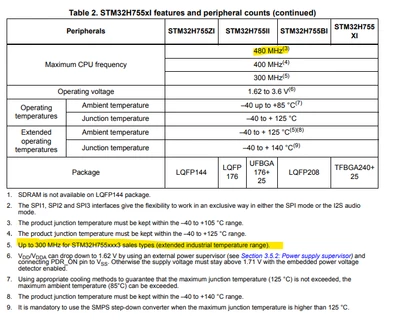

I think you are selecting STM32H755xxx3!!

Try select STM32H755xxx6 with which you can reach 480MHz.

[Imen.D]

Hi @Junde ,

Did you solve your problem? In case your issue is solved, please close this topic by clicking "Accept as Solution" for the correct answer.
