costi
Associate III
April 3, 2023
Solved

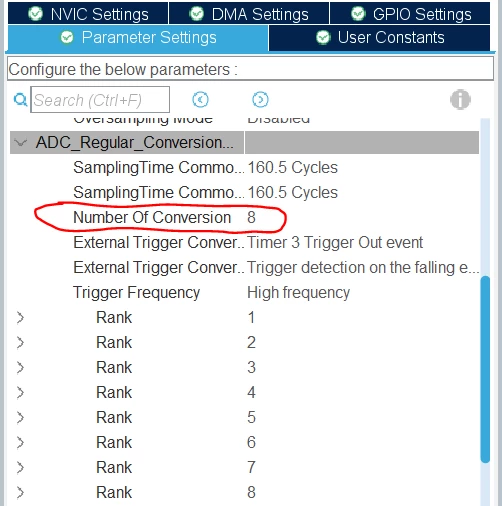

I have to use 9 ADC channels using scan conversion mode. I can't set Number Of Conversion field more than 8. The ADC used pins are set as ADC inputs. If somebody has an answer please help me with this thing. Thanks in advanced.

  • April 3, 2023
  • 4 replies
  • 1473 views


This topic has been closed for replies.
Best answer by AScha.3

from


set

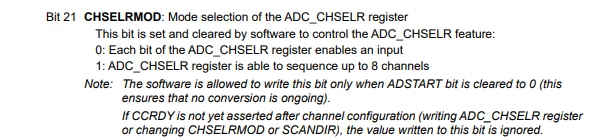

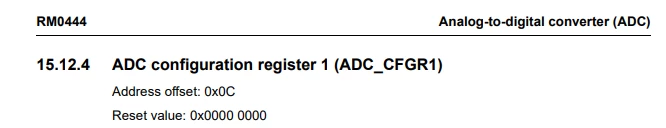

0693W00000bhOlFQAU.pngbut you want > 8 ch , so :

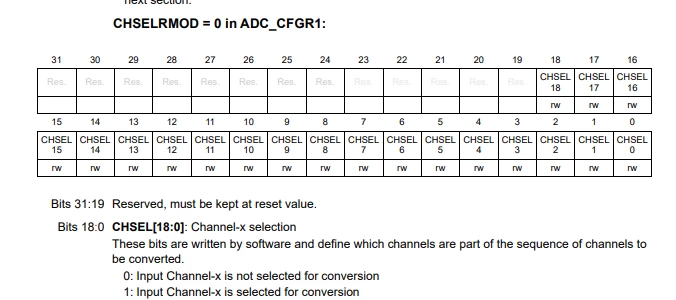

0693W00000bhOleQAE.pngok ?

4 replies

AScha.3
Super User
April 3, 2023

I can't find my crystal ball right now.

...to tell: which cpu?

"If you feel a post has answered your question, please click ""Accept as Solution""."
costi
costiAuthor
Associate III
April 3, 2023

yes, sorry for that. It's about STM32G0B1RET6

AScha.3
AScha.3Best answer
Super User
April 3, 2023

from


set


0693W00000bhOlFQAU.pngbut you want > 8 ch , so :

0693W00000bhOleQAE.pngok ?

"If you feel a post has answered your question, please click ""Accept as Solution""."
costi
costiAuthor
Associate III
April 3, 2023

clear

thanks for your support
