Implement BLE Mesh with X-NUCLEO-BNRG2A1 and Nucleo-F401 / L433

[Kumar123]

Hi

How to implement BLE [X-NUCLEO-BNRG2A1] Mesh on Nucleo-F401 and Nucleo-L433 boards?

[Andrew Neil]

Did you check out the X-NUCLEO-BNRG2A1 Documentation?

https://www.st.com/en/ecosystems/x-nucleo-bnrg2a1.html#documentation



UM2992, "Getting started with FP-LIT-BLEMESH1 function pack for IoT nodes with Bluetooth® Low Energy mesh connectivity and lighting mode" would sound like a good starting point ...



PS:

See also The available Tools & Software; eg

X-CUBE-BLEMESH1, "Mesh over Bluetooth low energy software expansion for STM32Cube"

FP-LIT-BLEMESH1, "STM32Cube function pack for IoT nodes with Bluetooth Low Energy mesh connectivity and lighting model"

FP-SNS-BLEMESH1, "STM32Cube function pack for IoT node with BLE Mesh connectivity and sensor model"



via: https://www.st.com/en/ecosystems/x-nucleo-bnrg2a1.html#tools-software

[mƎALLEm]

Hello,

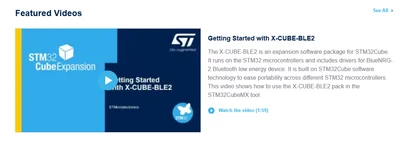

See the video: Getting Started with X-CUBE-BLE2 at the bottom of the page:

Hope that helps.

[Kumar123]

Hi Andrew

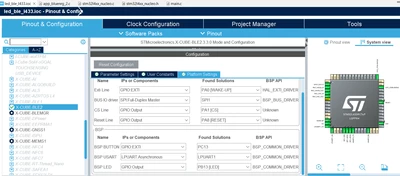

I am testing the Nucleo-L433RC-P board with a BlueNRG-2 BLE interface. I configured the setup, but the BLE device is not being detected in the ST BLE app. Look at pic, Any modifications require are not ?





[mƎALLEm]

Hello @Kumar123

I think the original question has been answered. Please close this thread by accepting the comment that answred that question and open a new thread for that issue.

Thank you for your understanding.
