IOC Code generation doesn't work for PVD

[stacatoengineer]

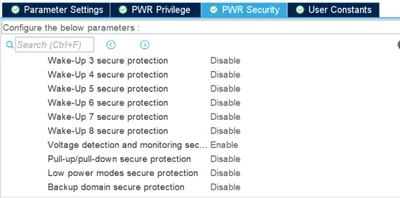

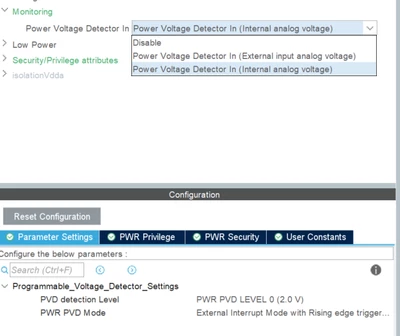

In the IOC editor, under PWR, and Monitoring, I have set below

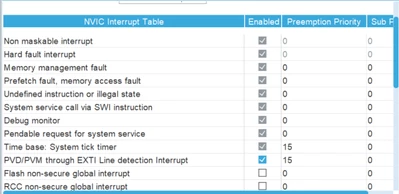

and, I read that below in NVIC needs to be set

When I look at git diff to observe changes, no files except ioc have been changed. How do I get it to work. I am using CubeIDE 1.19.







[TDK]

Did you regenerate the code?

Include your IOC file if you can.

[stacatoengineer]

Yes, in addition to saving the IOC file and letting it do its thing. I navigated to Project > Generate Code and executed it.

I can't share the IOC file unfortunately. Also HAL_PWREx_PVD_PVM_IRQHandler()  and the weak HAL_PWR_PVDCallback() already exists in stm32u5xx_hal_pwr_ex.c

[Ghofrane GSOURI]

Hello @stacatoengineer

First let me thank you for posting.

Could you please send me your IOC file via private message, along with a screenshot of the relevant git diff? This will help me better understand your configuration and the changes made.

THX

Ghofrane
