grumblyturtle
Associate
June 23, 2024
Solved

Java error when enabling X-CUBE-FREERTOS on STM32U5

  • June 23, 2024
  • 2 replies
  • 2030 views

6.11.1 with STM32U575RITx

when I click "CMSIS RTOS2" to enable the installed middleware X-CUBE-FREERTOS, mouse shows a busy icon and the FreeRTOS configuration in the bottom panel never opens.



STM32CubeIDE can open the IOC file and the FreeRTOS configuration panel is displayed there fine.





2024-06-23 22:29:08,573 [INFO] ThirdParty:1030 - CMSIS Pack Vendor :STMicroelectronics X-CUBE-TOF1 3.0.0
2024-06-23 22:29:08,574 [INFO] ThirdPartyModel:298 - Start build external matchings
2024-06-23 22:29:10,742 [INFO] ThirdPartyModel:316 - End build external matchings
2024-06-23 22:29:10,778 [INFO] LoadServerUpdatesThread:375 - End of LoadServerUpdate Thread
Jun 23, 2024 10:29:38 PM java.util.prefs.FileSystemPreferences checkLockFile0ErrorCode
WARNING: Could not lock System prefs. Unix error code 2.
Jun 23, 2024 10:29:38 PM java.util.prefs.FileSystemPreferences syncWorld
WARNING: Couldn't flush system prefs: java.util.prefs.BackingStoreException: Couldn't get file lock.
2024-06-23 22:30:08,141 [INFO] RtosManager:919 - Current active RTOS is STMicroelectronics.X-CUBE-FREERTOS.1.2.0 [CortexM33]
Jun 23, 2024 10:30:08 PM java.util.prefs.FileSystemPreferences checkLockFile0ErrorCode
WARNING: Could not lock System prefs. Unix error code 2.
Jun 23, 2024 10:30:08 PM java.util.prefs.FileSystemPreferences syncWorld
WARNING: Couldn't flush system prefs: java.util.prefs.BackingStoreException: Couldn't get file lock.
Exception in thread "AWT-EventQueue-0" java.lang.NoSuchMethodError: 'void sun.misc.Unsafe.ensureClassInitialized(java.lang.Class)'
	at com.oracle.truffle.api.library.LibraryFactory.ensureLibraryInitialized(LibraryFactory.java:384)
	at com.oracle.truffle.api.library.LibraryFactory.getUncached(LibraryFactory.java:364)
	at com.oracle.truffle.api.library.LibraryFactory.<init>(LibraryFactory.java:210)
	at com.oracle.truffle.api.interop.InteropLibraryGen.<init>(InteropLibraryGen.java:178)
	at com.oracle.truffle.api.interop.InteropLibraryGen.<clinit>(InteropLibraryGen.java:169)
	at java.base/java.lang.Class.forName0(Native Method)
	at java.base/java.lang.Class.forName(Class.java:529)
	at java.base/java.lang.Class.forName(Class.java:508)
	at com.oracle.truffle.api.library.LibraryFactory.loadGeneratedClass(LibraryFactory.java:791)
	at com.oracle.truffle.api.library.LibraryFactory.resolveImpl(LibraryFactory.java:740)
	at com.oracle.truffle.api.library.LibraryFactory.resolve(LibraryFactory.java:733)
	at com.oracle.truffle.api.interop.InteropLibrary.<clinit>(InteropLibrary.java:2941)
	at com.oracle.truffle.polyglot.PolyglotValueDispatch.<clinit>(PolyglotValueDispatch.java:170)
	at com.oracle.truffle.polyglot.PolyglotImpl.initialize(PolyglotImpl.java:166)
	at org.graalvm.polyglot.impl.AbstractPolyglotImpl.setConstructors(AbstractPolyglotImpl.java:288)
	at org.graalvm.polyglot.Engine$1.loadAndValidateProviders(Engine.java:1107)
	at org.graalvm.polyglot.Engine$1.run(Engine.java:1067)
	at org.graalvm.polyglot.Engine$1.run(Engine.java:1061)
	at java.base/java.security.AccessController.doPrivileged(AccessController.java:319)
	at org.graalvm.polyglot.Engine.initEngineImpl(Engine.java:1061)
	at org.graalvm.polyglot.Engine$ImplHolder.<clinit>(Engine.java:143)
	at org.graalvm.polyglot.Engine.getImpl(Engine.java:367)
	at org.graalvm.polyglot.Engine$Builder.build(Engine.java:665)
	at com.st.microxplorer.mcu.rtos.data.RtosDataEditor.<init>(RtosDataEditor.java:365)
	at com.st.microxplorer.mcu.rtos.data.RtosDataPanel.createDefaultTask(RtosDataPanel.java:289)
	at com.st.microxplorer.mcu.rtos.data.RtosDataPanel.<init>(RtosDataPanel.java:151)
	at com.st.microxplorer.mcu.rtos.data.RtosDataGroupPanel.<init>(RtosDataGroupPanel.java:39)
	at com.st.microxplorer.mcu.rtos.data.RtosUserConfigurationPanelBuilder.getConfigurationPanels(RtosUserConfigurationPanelBuilder.java:55)
	at com.st.microxplorer.mcu.rtos.data.RtosUserConfigurationPanelBuilder.getRtosConfigurationPanel(RtosUserConfigurationPanelBuilder.java:122)
	at com.st.microxplorer.plugins.ipmanager.generictreatment.gui.MainPanel.buildSharedComponentTabs(MainPanel.java:429)
	at com.st.microxplorer.plugins.ipmanager.generictreatment.gui.MainPanel.createTabs(MainPanel.java:387)
	at com.st.microxplorer.plugins.ipmanager.generictreatment.gui.MainPanel.<init>(MainPanel.java:164)
	at com.st.microxplorer.plugins.ip.genericplugin.GenericPlugin.getUI(GenericPlugin.java:48)
	at com.st.microxplorer.plugins.ipmanager.gui.BlockDiagram.createIpPanel(BlockDiagram.java:422)
	at com.st.microxplorer.plugins.ipmanager.gui.BlockDiagram.getIPConfigPanel(BlockDiagram.java:560)
	at com.st.microxplorer.plugins.ipmanager.gui.BlockDiagram.getIPConfigPanel(BlockDiagram.java:466)
	at com.st.microxplorer.plugins.ipmanager.gui.BlockDiagram.propertyChange(BlockDiagram.java:1311)
	at java.desktop/java.beans.PropertyChangeSupport.fire(PropertyChangeSupport.java:343)
	at java.desktop/java.beans.PropertyChangeSupport.firePropertyChange(PropertyChangeSupport.java:335)
	at com.st.microxplorer.mxsystem.MxSystem.propertyChange(MxSystem.java:474)
	at java.desktop/java.beans.PropertyChangeSupport.fire(PropertyChangeSupport.java:343)
	at java.desktop/java.beans.PropertyChangeSupport.firePropertyChange(PropertyChangeSupport.java:335)
	at java.desktop/java.beans.PropertyChangeSupport.firePropertyChange(PropertyChangeSupport.java:268)
	at com.st.microxplorer.util.MXPropertyChangeSupport.firePropertyChange(MXPropertyChangeSupport.java:54)
	at com.st.microxplorer.mcu.Mcu.propertyChange(Mcu.java:1803)
	at java.desktop/java.beans.PropertyChangeSupport.fire(PropertyChangeSupport.java:343)
	at java.desktop/java.beans.PropertyChangeSupport.firePropertyChange(PropertyChangeSupport.java:335)
	at java.desktop/java.beans.PropertyChangeSupport.firePropertyChange(PropertyChangeSupport.java:268)
	at com.st.microxplorer.util.MXPropertyChangeSupport.firePropertyChange(MXPropertyChangeSupport.java:54)
	at com.st.microxplorer.mcu.Mode.firePropertyChange(Mode.java:2208)
	at com.st.microxplorer.mcu.Mode.setMode(Mode.java:1935)
	at com.st.microxplorer.peripheralpanel.CheckSwPackMode.doAction(SwPackMode.java:910)
	at com.st.microxplorer.peripheralpanel.CheckSwPackMode$1.run(SwPackMode.java:894)
	at java.desktop/java.awt.event.InvocationEvent.dispatch(InvocationEvent.java:318)
	at java.desktop/java.awt.EventQueue.dispatchEventImpl(EventQueue.java:773)
	at java.desktop/java.awt.EventQueue$4.run(EventQueue.java:720)
	at java.desktop/java.awt.EventQueue$4.run(EventQueue.java:714)
	at java.base/java.security.AccessController.doPrivileged(AccessController.java:400)
	at java.base/java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(ProtectionDomain.java:87)
	at java.desktop/java.awt.EventQueue.dispatchEvent(EventQueue.java:742)
	at java.desktop/java.awt.EventDispatchThread.pumpOneEventForFilters(EventDispatchThread.java:203)
	at java.desktop/java.awt.EventDispatchThread.pumpEventsForFilter(EventDispatchThread.java:124)
	at java.desktop/java.awt.EventDispatchThread.pumpEventsForHierarchy(EventDispatchThread.java:113)
	at java.desktop/java.awt.EventDispatchThread.pumpEvents(EventDispatchThread.java:109)
	at java.desktop/java.awt.EventDispatchThread.pumpEvents(EventDispatchThread.java:101)
	at java.desktop/java.awt.EventDispatchThread.run(EventDispatchThread.java:90)
2024-06-23 22:30:08,606 [WARN] IP:2120 - rccPrivilegeSecure not found: check if there is a RefParameter without a condition.
2024-06-23 22:30:08,607 [WARN] IP:2120 - rccSecurity not found: check if there is a RefParameter without a condition.
2024-06-23 22:30:08,683 [WARN] IP:2120 - rccPrivilegeSecure not found: check if there is a RefParameter without a condition.
2024-06-23 22:30:08,683 [WARN] IP:2120 - rccSecurity not found: check if there is a RefParameter without a condition.
Jun 23, 2024 10:30:38 PM java.util.prefs.FileSystemPreferences checkLockFile0ErrorCode







Best answer by grumblyturtle

I think opening the IOC file in STM32 Cube IDE fixed the problem, somehow.

The RTOS tab now works normally in Cube MX.

also yes everything is installed.







2 replies

Amel NASRI
Amel NASRI
Technical Moderator
June 24, 2024

Hi @grumblyturtle ,

Before Selecting the FreeRTOS™ version and heap model at CMSIS RTOS2, make sure that X-CUBE-FreeRTOS is added properly.

You need to:

  1. click [Select Components] under the [Software Packs] menu.
  2. Scroll down the list and select [STMicroelectronics.X-CUBE-FREERTOS]. In case it is not installed or you would need to use a different version, install it first using the [Install] button within the [Selection] column.

Try this way and let me know if you still have the java issue or not.

-Amel

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
G
grumblyturtleAuthor
Associate
June 24, 2024

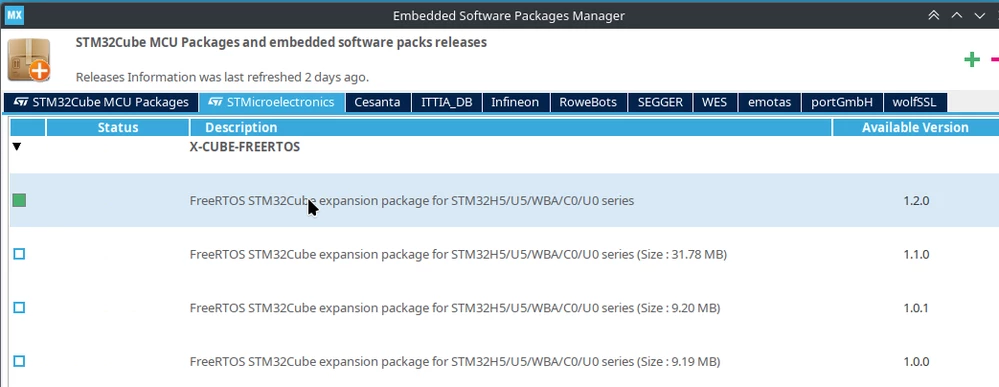

Thanks for the reply, obviously the module is installed, otherwise I would not even see the checkbox to enable it.

Clicking the CMSIS RTOS2 checkbox produces the described freeze and errors in the log.



    Amel NASRI
    Amel NASRI
    Technical Moderator
    June 24, 2024

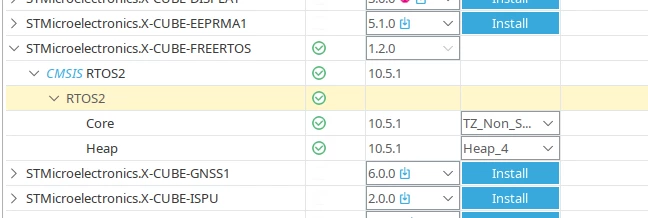

    What About the Heap? Make sure that required selections are done:


    -Amel

    To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
    G
    grumblyturtleAuthorBest answer
    Associate
    June 25, 2024

    I think opening the IOC file in STM32 Cube IDE fixed the problem, somehow.

    The RTOS tab now works normally in Cube MX.

    also yes everything is installed.
