Multiple ADC Channel Configuration Issue With STM32H723ZG nucleo board

[mvenkat86]

Hello STM Team,

I am using the STM32H723ZG board with MATLAB STM embedded coder support packages and I configured the STM32H7 MCU peripherals for ADC1,ADC2 and ADC3,PWM and GPIO, i can see the signals on the GPIO output pins and PWM when I don't use the multiple configuration's in the ADC but When I configure the Multiple channel ADC configuration, I could not see any signal on the GPIO and PWM pins,  Can i know is there any issue with DMA configuration with Multiple channel ADC?

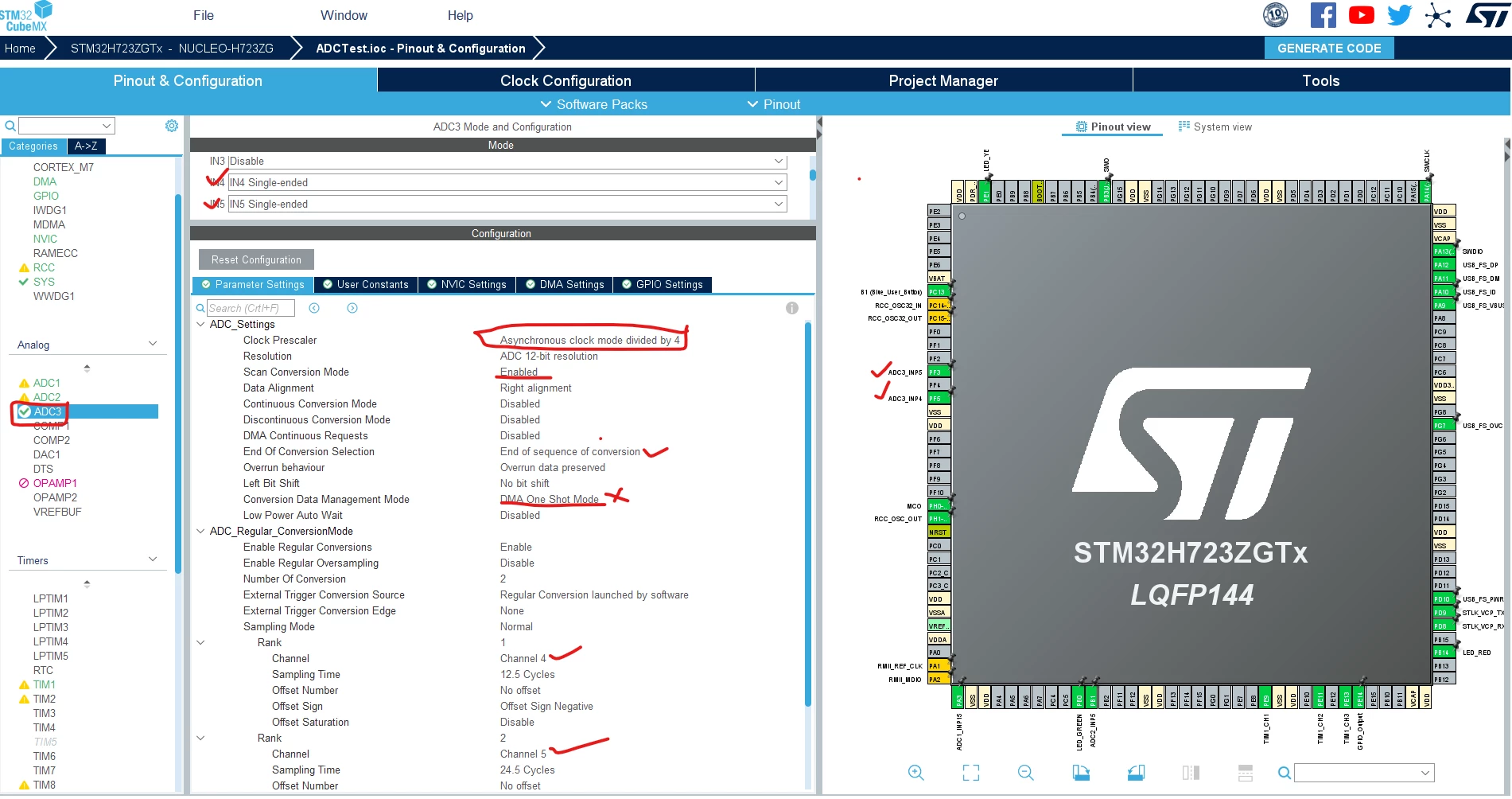

Attached the multiple channel configurations for ADC in the picture.

BR

Venkat

[Ghofrane GSOURI]

Hello @mvenkat86

First let me thank you for posting.

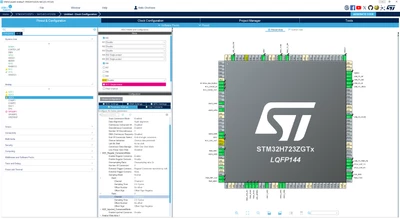

I used CubeMX 6.12.0 in order to reproduce the issue mentioned above and this is what I got --> all the signals are there even after  using the multiple configuration's in the ADC

So  I would appreciated if you share your IOC with me in order to push further the investigation.

I will be waiting for your feedback.

THX

Ghofrane

[mvenkat86]

Dear Ghofrane

I am using MATLAB 2022b, which is compatible with CubeMX 6.4.0 , otherwise i was facing issue for creating the ioc file if I don't use 6.4.0.



I am attaching my .ioc file please check. Thank you for looking into the issue.



BR

Venkat
