Package error when importing examples of NUCLEO-U031R8

[Torris-Yin]

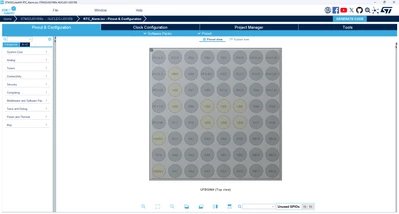

The MCU of NUCLEO-U031R8 is LQFP64. But if I import the example of NUCLEO-U031R8, STM32CubeMX shows it as UFBGA64.



[Imen.D]

Hello @Torris-Yin ,

The STM32U031R8T6 MCU is an LQFP64 package, and STM32U031R8I6 is an UFBGA64 package.

In your case, you are using the example with STM32U031R8Ix which is an UFBGA64 package.

[Torris-Yin]

Hello, @Imen.D

I am using the example of NUCLEO-U031R8, which is STM32U031R8T6. I attached a video of my operation.

Thanks.



[Imen.D]

Hi @Torris-Yin ,

I see the contradiction now.

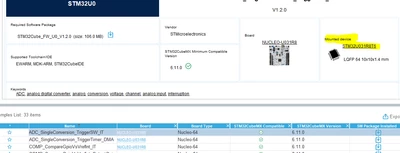

For the selected project: the mounted device is STM32U031R8Tx (LQFP64 package).

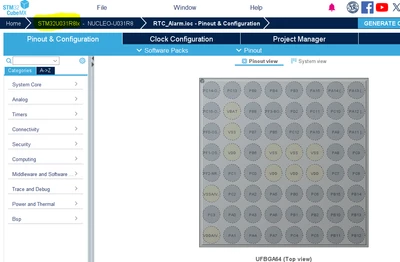

But, when you open the project, it is mentioned STM32U031R8Ix (which is UFBGA64 package).

Thank you for rising this up.

I escalated this issue to our CubeMX team (via internal ticket number: 198841)

(PS: Internal ticket number is only for ST reference, not accessible outside of ST)

[Imen.D]

Hello @Torris-Yin ,

This issue is fixed in the STM32CubeMX v6.15.0

Thank you once again for your contribution.
