Request number can not be changed in TIM20 "DMA Request Synchronization Settings"

[WZH]

I'm using CubeMX v6.11.0 to generate code for STM32G474.

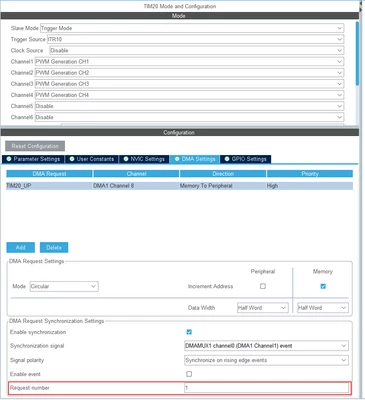

When I change TIM20's "Request Number" from the default 1 to 4 and press "CTRL + S" to save or click "GENERATE CODE", the number always changes back to 1 automatically.







[STTwo-32]

Hello @WZHWZH and welcome to the ST Community :smiling_face_with_smiling_eyes:.

Can you share your .ioc file.

Best Regards.

STTwo-32

[WZH]

It's already attached in the first post :)

[STTwo-32]

Hello,

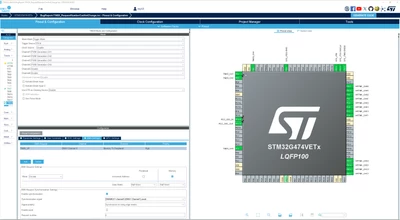

I've been able to set the Request number to 4 then saving the project. After closing and reopening again, everything works fine on my side (Request number is kept on 4):

Best Regards.

STTwo-32

[WZH]

But it doesn't make sense to me.
