SDMMC init error since STM32CubeIDE 1.11.0 update

[Brieuc]

There is a newly introduced bug in the freshly upgraded package coming with the IDE 1.11. MX_SDMMC1_SD_Init(void) does not configure hsd1.Init.BusWide = SDMMC_BUS_WIDE_1B but directly to the final state choosen in CubeMX (in my case 4B). But the SD requires to be started and configured with 1B before switching to the final configuration. Forcing manually to 1B makes the job, but CubeMX changes it back to 4B after each generation. The easy workaround is to force 1B in the user code at the end of SD_init function.

Could you confirm this is a bug and roll back to the correct version ?

[Diane POMABIA]

Hi @Brieuc​ ,To confirm this bug , can you give me more detail about your workspace? Name of board?

Regard,

Diane P

[Brieuc]

Hi Diane,

I use a custom board with a standard 4-wire SD connection driven by a STM32L476RGT6. The workspace has been upgraded from IDE 1.10 to 1.11 today. Do you need more details ?

[fabio239955]

Hi Diane, Brieuc

I confirm the bug. A previous version of STM32CUBE used to generate code like this:

 hmmc1.Instance = SDMMC1;
 hmmc1.Init.ClockEdge = SDMMC_CLOCK_EDGE_RISING;
 hmmc1.Init.ClockBypass = SDMMC_CLOCK_BYPASS_DISABLE;
 hmmc1.Init.ClockPowerSave = SDMMC_CLOCK_POWER_SAVE_DISABLE;
 hmmc1.Init.BusWide = SDMMC_BUS_WIDE_1B; //<< OK it works
 hmmc1.Init.HardwareFlowControl = SDMMC_HARDWARE_FLOW_CONTROL_DISABLE;
 hmmc1.Init.ClockDiv = 0;
 if (HAL_MMC_Init(&hmmc1) != HAL_OK)
 {
 Error_Handler();
 }
 if (HAL_MMC_ConfigWideBusOperation(&hmmc1, SDMMC_BUS_WIDE_4B) != HAL_OK)
 {
 Error_Handler();
 }

now Version: 1.11.2 generates code like this:

 hmmc1.Instance = SDMMC1;
 hmmc1.Init.ClockEdge = SDMMC_CLOCK_EDGE_RISING;
 hmmc1.Init.ClockBypass = SDMMC_CLOCK_BYPASS_DISABLE;
 hmmc1.Init.ClockPowerSave = SDMMC_CLOCK_POWER_SAVE_DISABLE;
 hmmc1.Init.BusWide = SDMMC_BUS_WIDE_4B; //<< WRONG!!!
 hmmc1.Init.HardwareFlowControl = SDMMC_HARDWARE_FLOW_CONTROL_DISABLE;
 hmmc1.Init.ClockDiv = 0;
 if (HAL_MMC_Init(&hmmc1) != HAL_OK)
 {
 Error_Handler();
 }
 if (HAL_MMC_ConfigWideBusOperation(&hmmc1, SDMMC_BUS_WIDE_4B) != HAL_OK)
 {
 Error_Handler();
 }

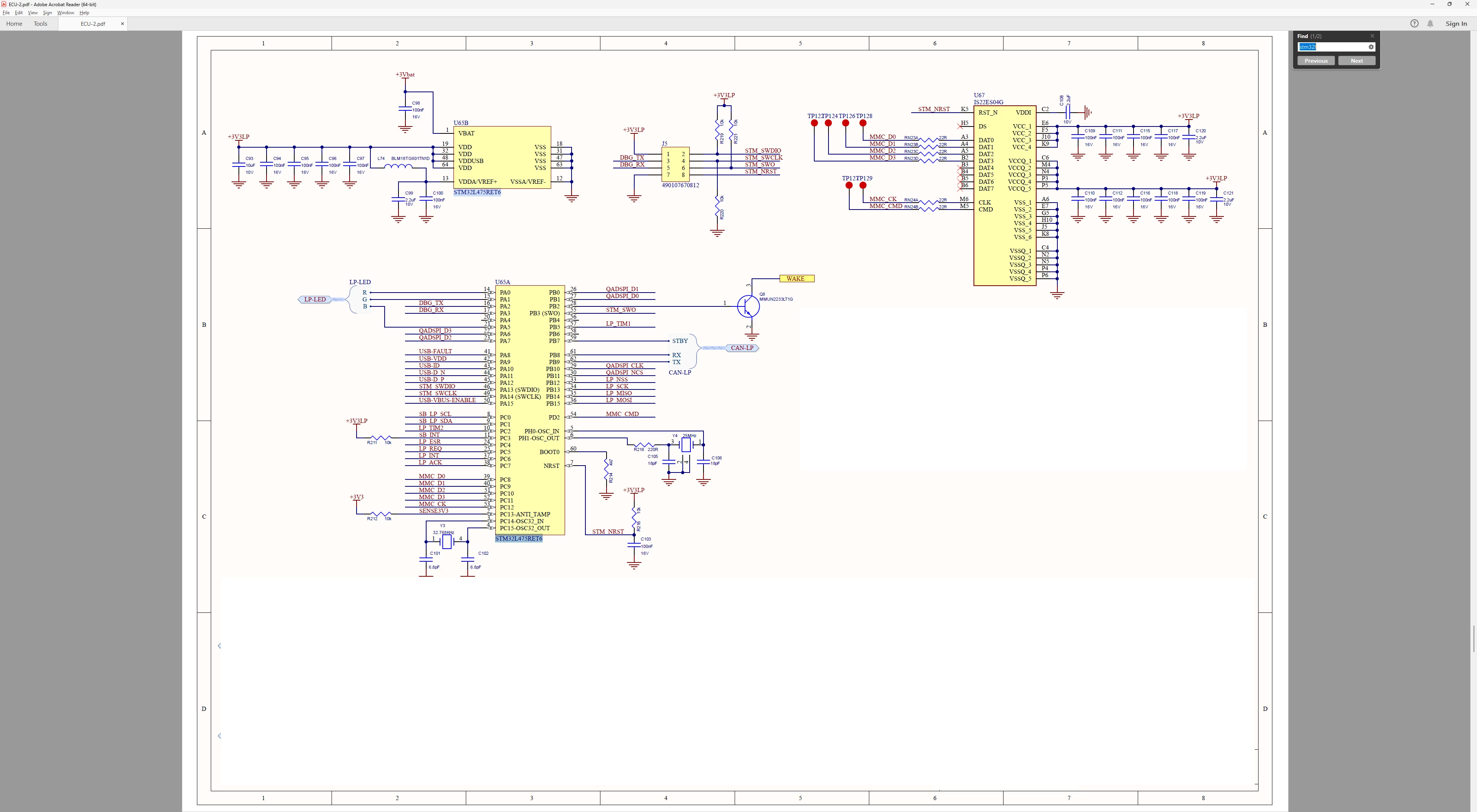

I use a custom board with a standard 4-wire SD connection to a STM32L4; please find schematic in attachment

[fabio239955]

attaching the .IOC file as well for your convenience

[AScha.3]

but on my H743 sd-init is (always, i did not update now)

always working fine. so 4-bit mode is not the problem here.

 hsd1.Instance = SDMMC1;
 hsd1.Init.ClockEdge = SDMMC_CLOCK_EDGE_RISING;
 hsd1.Init.ClockPowerSave = SDMMC_CLOCK_POWER_SAVE_ENABLE;
 hsd1.Init.BusWide = SDMMC_BUS_WIDE_4B;
 hsd1.Init.HardwareFlowControl = SDMMC_HARDWARE_FLOW_CONTROL_ENABLE;
 hsd1.Init.ClockDiv = 1;
 /* USER CODE BEGIN SDMMC1_Init 2 */
 if (HAL_SD_Init(&hsd1) != HAL_OK)
 {
 Error_Handler();
 }

sdmmc clk is 100MHz .

[Diane POMABIA]

Hi @Brieuc​ @fabio239955​ @AScha.3​

Thanks you for your feedback.

Can you give me you STM32CubeMx version ?

I'm escalating the problem to the relevant team so that it can be resolved.

Regards

DianeP

[fabio239955]

Thanks Dianep

My current STM32CubeIDE (with bug) is Version: 1.11.2 Build: 14494_20230119_0724 (UTC).

In April 2022 I was using a different version and it worked properly – non such a bug. I do not know the version. It was the latest available vestion at thet time.

With best regards

Fabio

[AScha.3]

hi,

i am using :

STM32CubeIDE

Version: 1.10.1

Build: 12716_20220707_0928 (UTC)

OS: Linux, v.4.19.0-1-amd64, x86_64 / gtk 3.22.11

Java vendor: Eclipse Adoptium

Java runtime version: 11.0.14.1+1

Java version: 11.0.14.1

+

STM32CubeMX - STM32 Device Configuration Tool

Version: 6.6.1-RC2

Build: 20220706-1420 (UTC)
