Start a new project with STM32H743VIT6

[khanhcong861989]

Dear all!

this is the first time i handle with STM32H7 series. in my project control ILI9488 by TouchGFX platform, 4 mosfets, 1 Led. in the first step, i try to blink a led at pin PB5 but seem unsuccess. i don't know how to fix, so can you share me my mistake and how to fix it. in attach file have schematic. can you take a look and share me your input.

[mƎALLEm]

Hello,

If you comment the line MX_TouchGFX_Process(); what happens?

[khanhcong861989]

Dear!

i try to blink led at Pin B5, but can not. i update newest program. pls help me.

[mƎALLEm]

Sorry I don't see any change in the While loop:

 while (1)
 {
 /* USER CODE END WHILE */

 MX_TouchGFX_Process();
 /* USER CODE BEGIN 3 */
		HAL_GPIO_TogglePin(GPIOB, Run_led_Pin);
		HAL_Delay(300);

 }

Could you please remove the call of MX_TouchGFX_Process() and try?

[khanhcong861989]

Dear!



this function was generate automatic when we use touchGFX designer, if we remove it. we can not display TFT LCD

[mƎALLEm]

Hello,

Getting back to you regarding CubeMx. There is an issue in CubeMx V6.12.1.

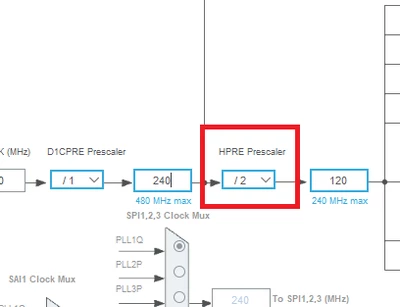

For System clock @240MHz/VOS2, the HPRE prescaler needs to be  2.

So in your ioc file set HPRE to 2 instead of 1.

The issue seems to be fixed in an internal version that will be available soon on st.com.

If this solved your issue/answered your question, please accept it as solution.

Thank you.
