STCUBEMX incomplete ThreadX code generation error on linux

[sai2]

Hi,

When I tried to generate a project with ThreadX for STM32N6, STCUBEMX generated incomplete code.

CubeMX Ver : 6.14.0

MCU: STM32N6

Platform: Ubuntu 24.04

ioc file attached.

[Mahmoud Ben Romdhane]

Hello @sai2 ,



First let me thank you for posting and welcome to the ST Community.

Your request is under investigation, and I will get back to you ASAP.

I suggest also that you provide a capture of the issue.



Best Regards.

Mahmoud



[sai2]

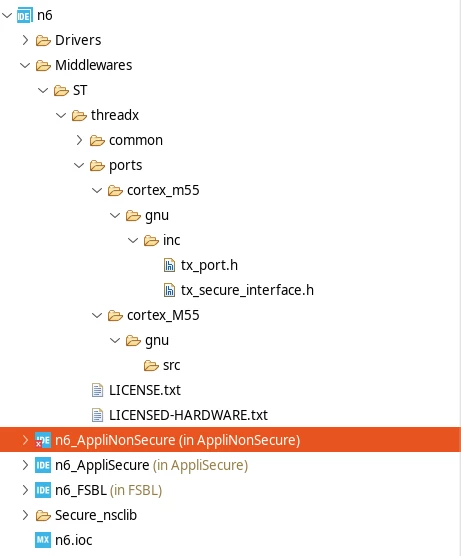

I attached a build log and screenshot of the folder structure. As you can see in the screenshot, there are duplicated cortex_m55 and cortex_M55 folder generated under middleware/ST/threadx/ports and there are no source code generated under middleware/ST/threadx/ports/cortex_M55/gnu/src. Generating project under window environment works and dont have duplicated "cortex_M55" folder.

There is another issue surfaced when I tried to import example application, which also result in incompleted project and was unable to build. Again, importing example project under window environment works fine.

Steps to reproduce:

1. Import STM32Cube Example

2. select "Ux_Host_VIDEO" example for "STM32N6570-DK"

3. build (fail)

error (for some reason I was unable to post the log file for example project)

make: *** No rule to make target '/home/sai/STM32CubeIDE/workspace_1.16.1/Ux_Host_VIDEO/Middlewares/ST/threadx/ports/cortex_m55/gnu/src/tx_misra.s', needed by 'Middlewares/ThreadX/Port/tx_misra.o'. Stop.
make: *** Waiting for unfinished jobs....
"make -j14 all" terminated with exit code 2. Build might be incomplete.



[Mahmoud Ben Romdhane]

Hello @sai2 ,



Thank you for bringing this issue to our attention.

An internal ticket is raised to the Development team under this number: 207773.



Thanks.

Mahmoud



[chornbeck]

Poking this thread to see if anyone has found a permanent solution to this issue. Using MX 6.15.0 and ThreadX, there are still two paths generated for the middleware, cortex_m55, which is correct, and cortex_M55, which fails. I can just delete the failing paths, but they come back when regenerating, which is incredibly annoying.

[Mahmoud Ben Romdhane]

Hello @chornbeck ,



Let me thank you for posting and welcome to the ST Community.

I suggest that you provide you Ioc.File.



Thanks.

Mahmoud
