STM23CubeIDE MX fails to generate second analog watchdog

  • October 2, 2025
  • 2 replies
  • 269 views

The first watchdog successfully generates

 /** Configure Analog WatchDog 1
 */
 AnalogWDGConfig.WatchdogNumber = ADC_ANALOGWATCHDOG_1;
 AnalogWDGConfig.WatchdogMode = ADC_ANALOGWATCHDOG_SINGLE_REG;
 AnalogWDGConfig.HighThreshold = 20;
 AnalogWDGConfig.LowThreshold = 4;
 AnalogWDGConfig.Channel = ADC_CHANNEL_1;
 AnalogWDGConfig.ITMode = ENABLE;
 if (HAL_ADC_AnalogWDGConfig(&hadc1, &AnalogWDGConfig) != HAL_OK)
 {
 Error_Handler();
 }

The second watchdog generates... nothing. When I write out similar code myself for the second watchdog then it starts working. The IOC interface looks like




Best answer by Karl Yamashita

Did you enable it?






2 replies

Karl Yamashita
Karl YamashitaBest answer
Principal
October 2, 2025

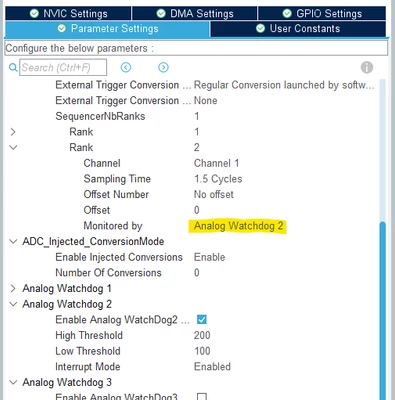

Did you enable it?






If a reply has proven helpful, click on Accept as Solution so that it'll show at top of the post.CAN Jammer an open source CAN bus hacking toolCANableV3 Open Source
    A
    avidronegAuthor
    Associate III
    October 3, 2025

    Thanks very much; that was the issue. I didn't see that "rank" can expand.
