STM32_WPAN is grayed-out in MX

[majd_sleem]

Dear STMicroelectronics Support Team,

I hope this message finds you well.

I am currently working with an STM32WB series microcontroller and using STM32CubeMX (version [insert version number]) for configuration.

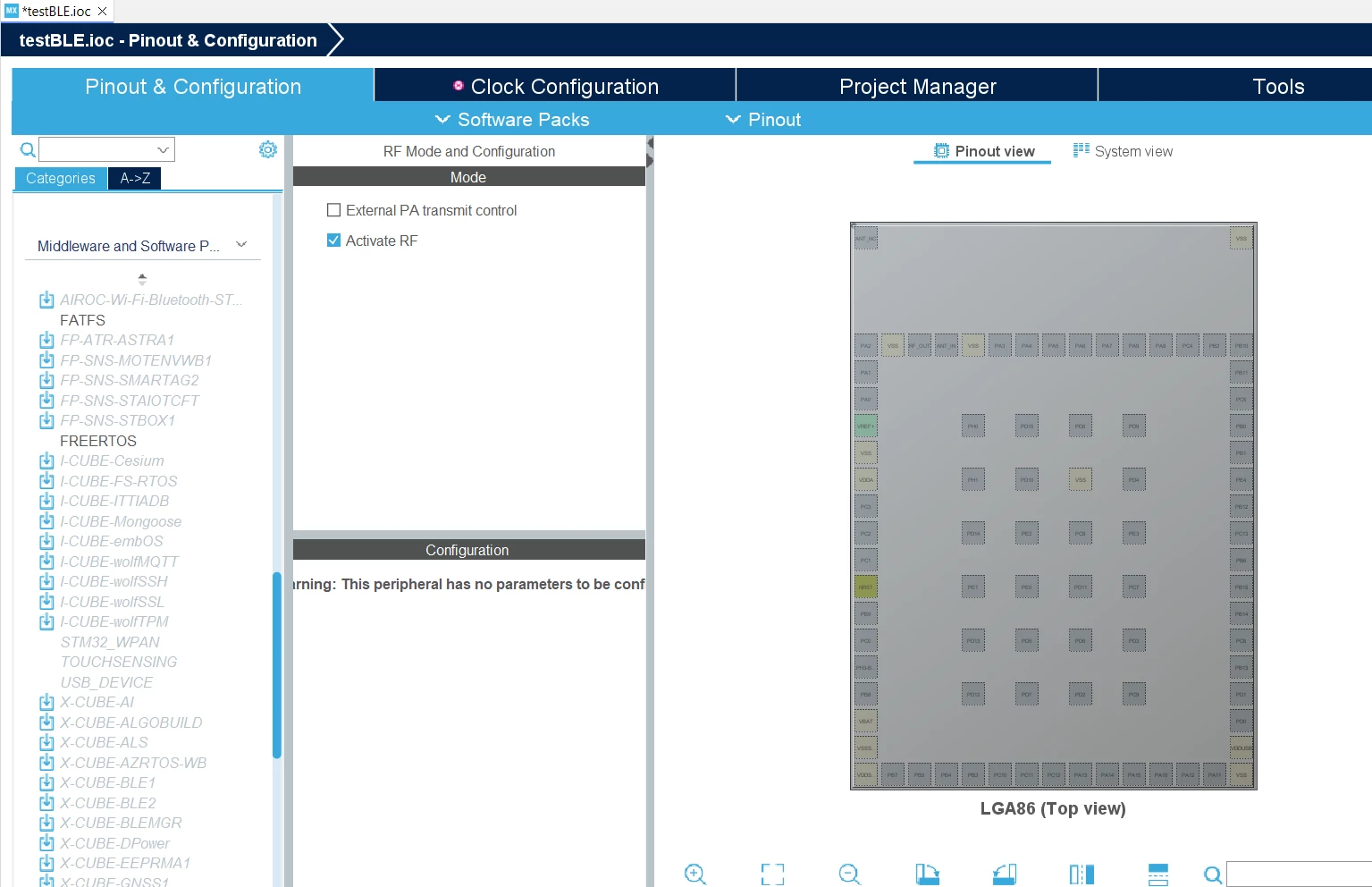

While setting up the project, I noticed that the STM32_WPAN middleware component is grayed out and cannot be selected or enabled.

I have verified that the correct MCU/board is chosen and that the project is properly configured for wireless features. However, the WPAN stack remains unavailable in the MX configuration interface.

Details:

• MCU/Board: STM32WB5MMGHx

• STM32CubeMX Version: 6.15.0

• STM32Cube Firmware Package:  v1.23.0

• IPCC : Activated
• HSEM : Activated
• RCC : HSE + LSE
• RF : Activate RF

• Observed behavior: “STM32_WPAN” option is grayed out and cannot be selected.

• Expected behavior: The STM32_WPAN middleware should be selectable to configure wireless stack features.

Could you please advise what might cause this and how I can enable or access the WPAN middleware in CubeMX?

Thank you for your assistance and support.

Kind regards,
Majd

[Mahmoud Ben Romdhane]

Hello @majd_sleem



Let me thank you for posting and welcome to the ST Community.

Your request is under investigation, and I will get back to you ASAP.



Thanks.

Mahmoud

[Issamos]

Hello @majd_sleem

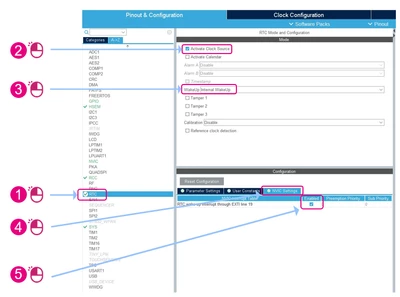

I think you should set the RTC as follow:

Best Regards.

II

[majd_sleem]

Thanks!

[Mahmoud Ben Romdhane]

Hello @majd_sleem



In order to enable STM32_WPAN, you need to activate RF, RTC, RCC, IPCC, HSEM.

It seems that you did not activate RTC on your project.





Thanks.

Mahmoud



[majd_sleem]

Thanks !
