STM32CubeIDE appears to be missing DMA TIM15_TRIG connection option for STM32G431KB

[etheory]

I want to add a TIM15_TRIG connection (is this the same as TRGO?) to a DMA transfer request.

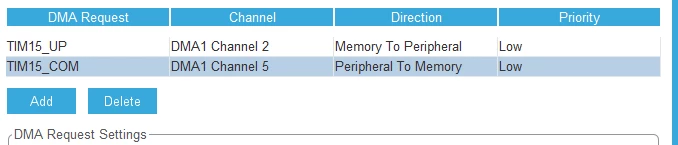

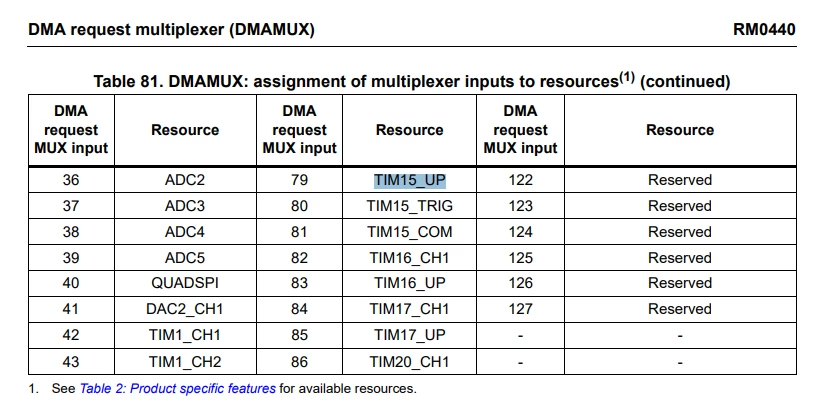

When trying to do this via STM32CubeIDE "Version: 1.11.2 Build: 14494_20230119_0724 (UTC)" I get the following options:i.e. no option to select TIM15_TRIG, which appears to be shown to be supported in RM0440:

Could this please be added to the interface so I can set it please?

And if it cannot be set in the STM32G431KB MCU, could you please update the documentation to reflect this fact please?

Thank you.

[waclawek.jan]

> (is this the same as TRGO?)

No, it's (roughly) the same as TRGI.

JW

[etheory]

Regardless the interface is missing options that the datasheet suggests are possible.​
