STM32CubeMX bug: Wrong ADC resolution for STM32L476

[Kamil Duljas]

Hi,

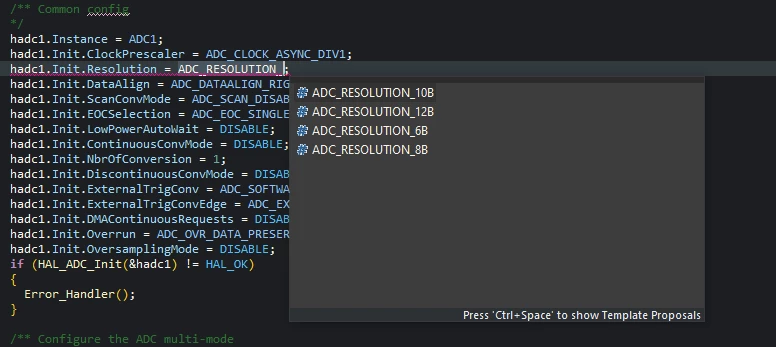

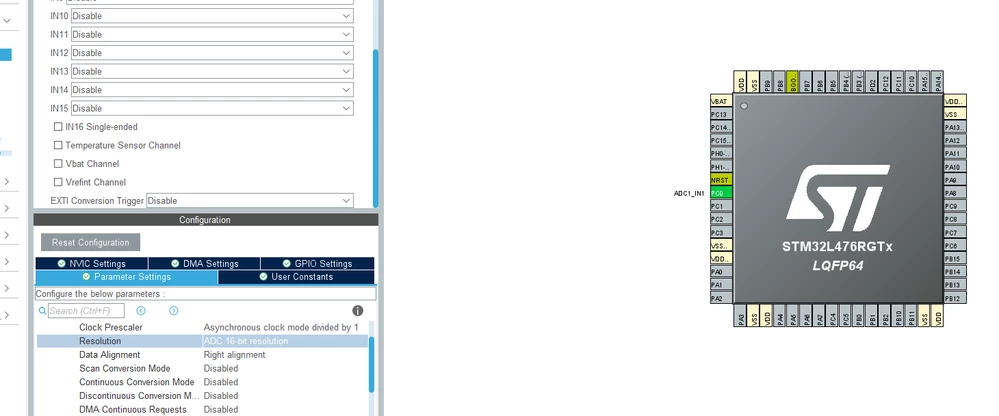

I notice that CubeMx allow choose 16-bit resolution but STM32L476 has range from 6 to 12 bit.

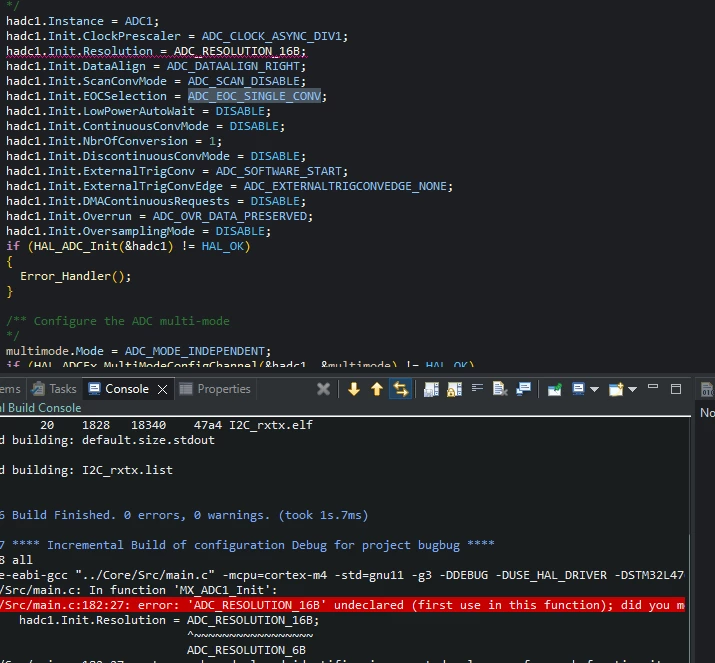

When I generate code I can't compile it:

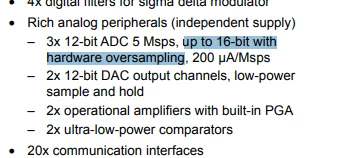

Moreover in datasheet we read on page 1:



but it's only one information about mystic 16-bit resolution :D

[Peter BENSCH]

Well, we are talking about a 12-bit ADC with hardware oversampling.

In the generated code you will find at the very bottom: hadc1.Init.OversamplingMode = DISABLE;, which is set by the CubeMX setting in "ADC_Regular_ConversionMode". You will get 16bit oversampling when enabled.

Does it answer your question?

Regards

/Peter

[Kamil Duljas]

I don't think so. CubeMx should not generate code that you can't compile it​

[Peter BENSCH]

What does the ability to compile have to do with 16-bit oversampling?

Can't you compile the code?

Do you know how 16-bit oversampling works?

[Imen.D]

Hello All,

Issue confirmed and an internal ticket (ID 150960) is submitted in order to fix this.

(PS: ID 150960 is an internal tracking number and is not accessible or usable by customers).

Thank you for your contribution.

Imen
