STM32CubeMX does NOT work in quiet mode

[dvescovi]

Follow-on from CubeMX code generation from command line.

---

I am posting again in hopes of getting meaningful answer.

I tried creating a simple script text file to automate code generation for my project. The script file has all of three lines:

config load DCC_tester.ioc
generate code .
exit

The feedback I got on why it did not work was my .ico file was corrupted. To prove this was not the case I used a very simple project file using one of your example projects from one of your released STM32H5 bundles.

The only modification I made was changing the name and making it a cmake project.

I am running on Windows 11 with CubeMX installed using all defaults.

I can click on the .ioc file from Windows Explorer and the MX IDE opens just fine. I can click the "GENERATE CODE" button and that also works just fine. All the files are generated as expected.

I try launching using the -q using ether a PowerShell script or a command line batch file and neither completes although it looks like its trying.  Seems to stall leaving a MXTmpFiles folder. cmake and other files like startup and linker file are not generated.

I have attached the .ioc  the script  text file as well as PowerShell and batch file ... none work as expected.



[Ghofrane GSOURI]

Hello @dvescovi

In your script , just do the following modification :

config load <filename>
generate code <path>
exit_mx

Example

config load "C:\Users\gsourigh\OneDrive - STMicroelectronics\Desktop\Thread\testcodegen\DCC_tester.ioc"
generate code "C:\Users\gsourigh\OneDrive - STMicroelectronics\Desktop\Thread\testcodegen"
exit_mx



Then launch the following command after cd the installation path of MX6.16.0

jre\bin\java -jar .\STM32CubeMX.exe -q "script path"

example

jre\bin\java -jar .\STM32CubeMX.exe -q "C:\Users\gsourigh\OneDrive - STMicroelectronics\Desktop\Thread\testcodegen\generatecode.txt"

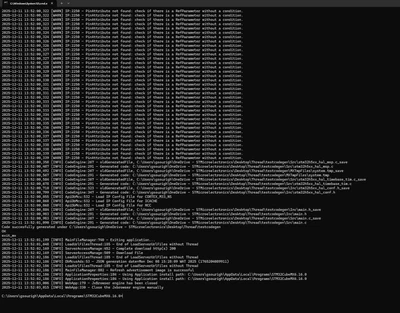

As you can see , the code will be generated successfully.





THX

Ghofrane

[dvescovi]

looks like you have cubemx installed in a different location. I have mine at:

C:\Program Files\STMicroelectronics\STM32Cube\STM32CubeMX\STM32CubeMX.exe

which is Windows standard location for everyone.

I have ioc and script in my c:/tmp/testcodegen

generatecode.txt now looks like:

config load C:\tmp\testcodegen\DCC_tester.ioc
generate code C:\tmp\testcodegen
exit_mx

launched by cd to

C:\Program Files\STMicroelectronics\STM32Cube\STM32CubeMX>

then

C:\Program Files\STMicroelectronics\STM32Cube\STM32CubeMX>jre\bin\java -jar .\STM32CubeMX.exe -q "C:\tmp\testcodegen\generatecode.txt"

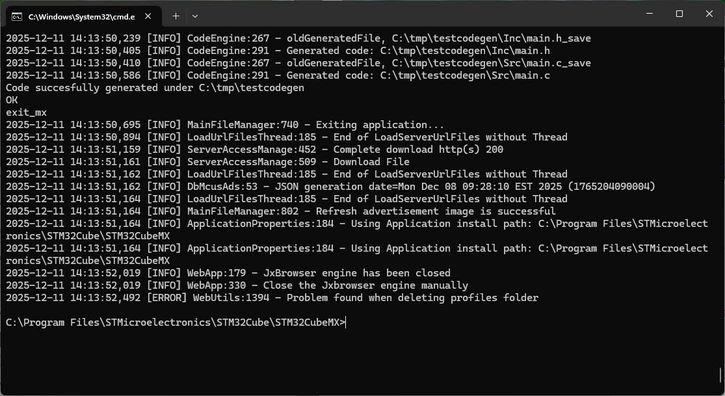

Tried again using my correct full paths and I get some source code generated but not cmake, linker startup etc.

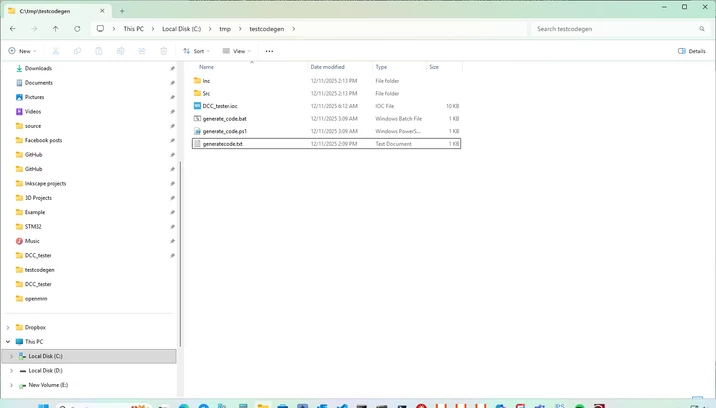

you can src and inc folders and files created within but NO cmake, linker, or start up files.





[dvescovi]

did not have quotes around path in generatecode.txt but even after adding them ... same results.
