STM32CubeMX, Memory Management Tool, Possible Bug with Access Permission Settings

  • June 18, 2025
  • 1 reply
  • 257 views

Settings:

STM32CubeMX 6.14.1
STM32H573VI
STM32CubeIDE v1.18.1

I am not quite sure, but up to my understanding the Memory Managment Tool has a bug when it comes to the "Access Permissions" settings.

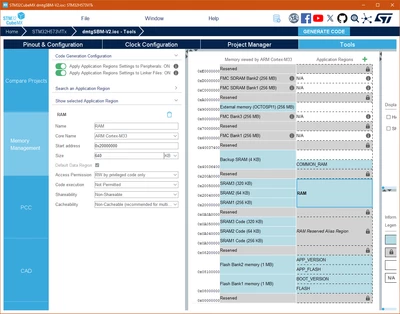

When RAM is set-up like this (Access Permission set to "RW by priviledged code only"):


It creates an initialization code for the GTZC1 that disables priviledge checking for the SRAM:

/**
 * @brief GTZC Initialization Function
 * @PAram None
 * @retval None
 */
static void MX_GTZC_Init(void)
{

 /* USER CODE BEGIN GTZC_Init 0 */

 /* USER CODE END GTZC_Init 0 */

 MPCBB_ConfigTypeDef MPCBB_Area_Desc = {0};

 /* USER CODE BEGIN GTZC_Init 1 */

 /* USER CODE END GTZC_Init 1 */
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[0] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[1] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[2] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[3] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[4] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[5] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[6] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[7] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[8] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[9] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[10] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[11] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[12] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[13] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[14] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[15] = 0x00000000;
 if (HAL_GTZC_MPCBB_ConfigMem(SRAM1_BASE, &MPCBB_Area_Desc) != HAL_OK)
 {
 Error_Handler();
 }
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[0] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[1] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[2] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[3] = 0x00000000;
 if (HAL_GTZC_MPCBB_ConfigMem(SRAM2_BASE, &MPCBB_Area_Desc) != HAL_OK)
 {
 Error_Handler();
 }
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[0] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[1] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[2] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[3] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[4] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[5] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[6] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[7] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[8] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[9] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[10] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[11] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[12] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[13] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[14] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[15] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[16] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[17] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[18] = 0x00000000;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[19] = 0x00000000;
 if (HAL_GTZC_MPCBB_ConfigMem(SRAM3_BASE, &MPCBB_Area_Desc) != HAL_OK)
 {
 Error_Handler();
 }
 /* USER CODE BEGIN GTZC_Init 2 */

 /* USER CODE END GTZC_Init 2 */

}

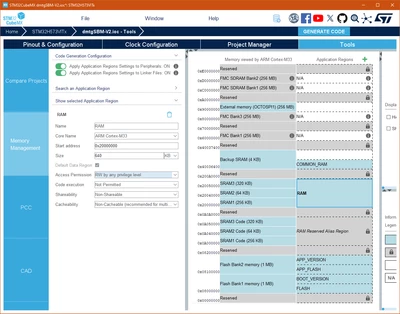

But when RAM is set-up like this (Access Permission set to "RW by any priviledge level"):


It creates an initialization code for the GTZC1 that enables priviledge checking for the SRAM:

/**
 * @brief GTZC Initialization Function
 * @PAram None
 * @retval None
 */
static void MX_GTZC_Init(void)
{

 /* USER CODE BEGIN GTZC_Init 0 */

 /* USER CODE END GTZC_Init 0 */

 MPCBB_ConfigTypeDef MPCBB_Area_Desc = {0};

 /* USER CODE BEGIN GTZC_Init 1 */

 /* USER CODE END GTZC_Init 1 */
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[0] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[1] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[2] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[3] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[4] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[5] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[6] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[7] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[8] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[9] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[10] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[11] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[12] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[13] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[14] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[15] = 0xFFFFFFFF;
 if (HAL_GTZC_MPCBB_ConfigMem(SRAM1_BASE, &MPCBB_Area_Desc) != HAL_OK)
 {
 Error_Handler();
 }
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[0] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[1] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[2] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[3] = 0xFFFFFFFF;
 if (HAL_GTZC_MPCBB_ConfigMem(SRAM2_BASE, &MPCBB_Area_Desc) != HAL_OK)
 {
 Error_Handler();
 }
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[0] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[1] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[2] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[3] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[4] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[5] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[6] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[7] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[8] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[9] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[10] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[11] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[12] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[13] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[14] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[15] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[16] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[17] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[18] = 0xFFFFFFFF;
 MPCBB_Area_Desc.AttributeConfig.MPCBB_PrivConfig_array[19] = 0xFFFFFFFF;
 if (HAL_GTZC_MPCBB_ConfigMem(SRAM3_BASE, &MPCBB_Area_Desc) != HAL_OK)
 {
 Error_Handler();
 }
 /* USER CODE BEGIN GTZC_Init 2 */

 /* USER CODE END GTZC_Init 2 */

}

Maybe I do not understand the intention behind this setting correctly, but in my optinion it should be exactly vice-versa.

This caused me some headaches while trying to find out why GPDMA1 was not able to write any data into the RAM.

Best Regards

  Thomas

1 reply

Ghofrane GSOURI
Ghofrane GSOURI
Technical Moderator
June 18, 2025

Hello @TThan

First let me thank you for posting.

I'm currently investigating this issue issue .

Could you please  provide your IOC.

I 'will get back to you asap.

THX

Ghofrane
