stm32f030cctx uart generated code bug

[dqsh06]

hello,

now I am using stm32f030cct6 to design a simple program. i used all the 6 uarts of this chip. it works fine, but the interrupt code generated by STM32CubeMX has a simple bug.

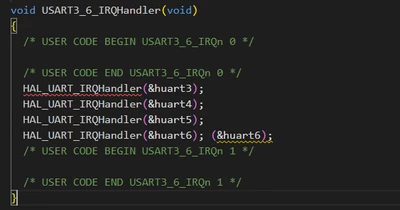

the code as below.

for the uart6, there is a useless （&huart6);  i think it is no effect to the function, but when building, there is a warning.

stm32f0xx_it.c:172:33: warning: statement with no effect [-Wunused-value]

[build]   172 |   HAL_UART_IRQHandler(&huart6);(&huart6);

[build]       |                                ~^~~~~~~~



I dont like the warning.

so i think you can simplly fix this bug.



thanks.

[Ghofrane GSOURI]

Hello @dqsh06

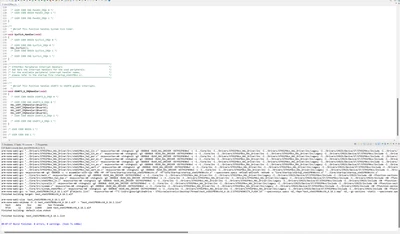

After performing a test using STM32CubeMX 6.16.1, I obtained no compilation errors and STM32CubeMX behaved as expected.

Could you please retest on your side using STM32CubeMX 6.16.1?

I have attached my .ioc file for your reference, in case it helps reproduce the behavior.



Thx

Ghofrane

[dqsh06]

hello @Ghofrane GSOURI

i used the stm32cubeMX version 6.15.0. i think your guys had already fixed it with the new version. it is good.



Thanks,

dqsh06
