STM32F207 LwIP + FreeRTOS configuration Error: RTOS_USE_NEWLIB_REENTRANT

[SKuhr.1]

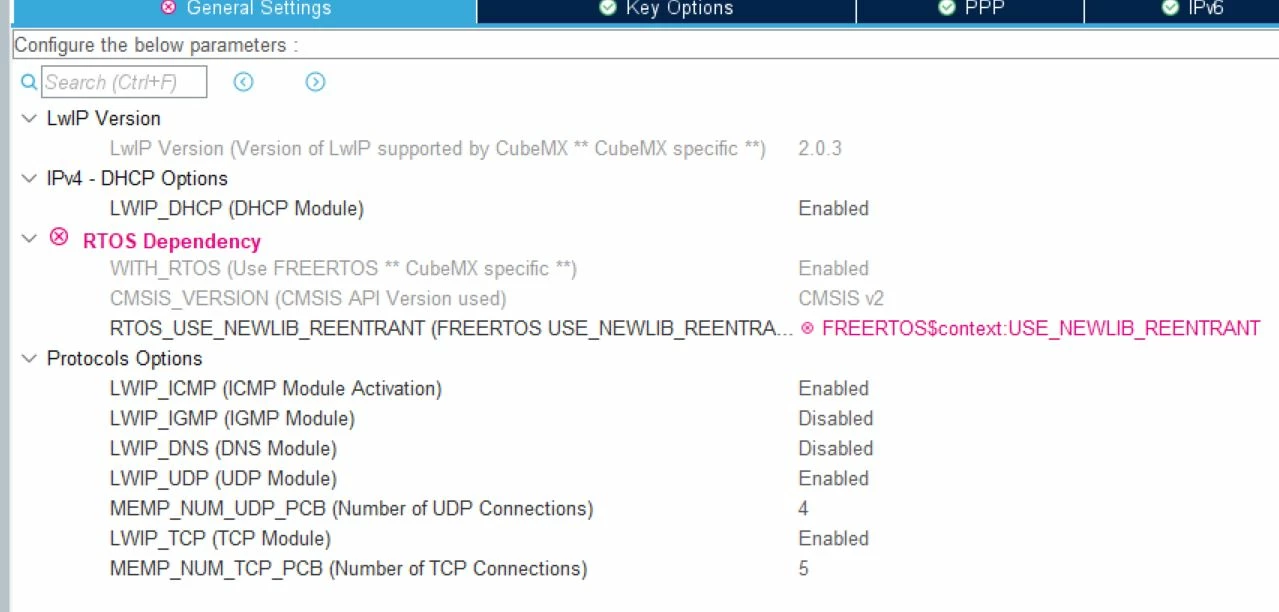

Hello, I have problems configuring a STM32F207 with Ethernet and LwIP and FreeRTOS. I have activated RTOS_USE_NEWLIB_REENTRANT in the FreeRTOS settings but still an error message appears in the LwIP settings. How can I fix this?

[SKuhr.1]

I have also checked the error with other chips of the F2xx series, but the error is also there. Does anyone have an idea how I can fix the problem?

[Ghofrane GSOURI]

Hello @SKuhr.1

First let me thank you for posting.

Please have a look:

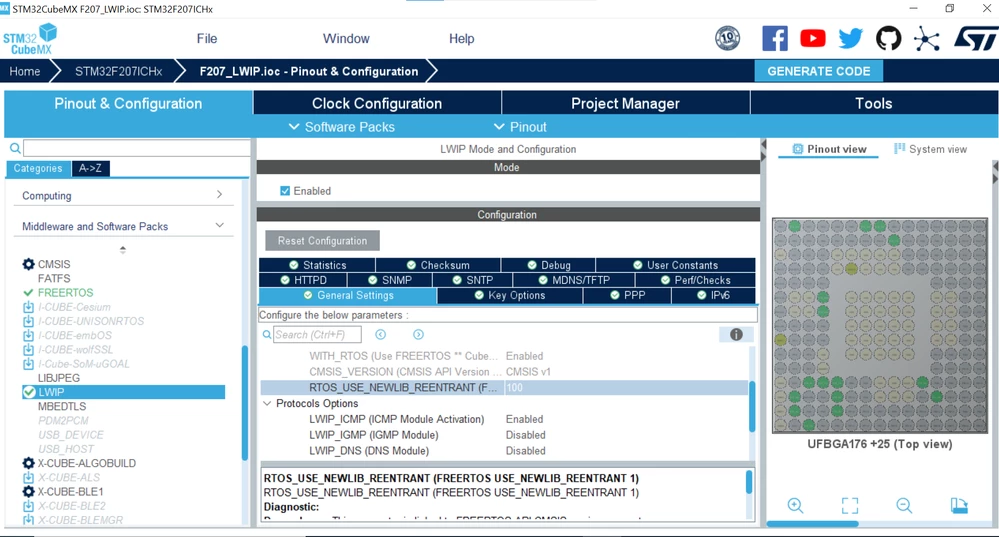

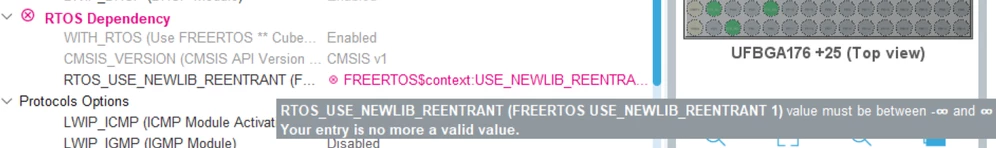

After Enabling RTOS_USE_NEWLIB_REENTRANT in the FreeRTOS settings you need to give it a value .



Thx

Ghofrane
