STM32H5 does not have a DQS line for HYPERBUS

[burakOnemli]

Hello everyone,

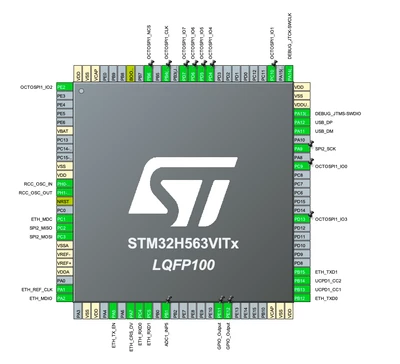

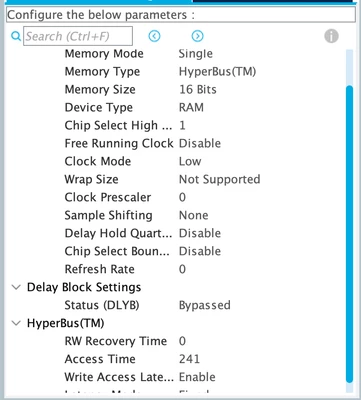

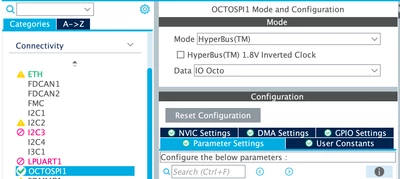

I was trying to design a Hyperbus RAM based PCB for one of my projects but I realized that when I configure Hyperbus under the OCTOSPI1 settings I do not get the DQS(RWDS) line. Here are the configuration pictures.



Thanks,

Burak Önemli

[mƎALLEm]

Hello @burakOnemli and welcome to the community,

I will check internally this point and get back to you as soon as I have a feedback (internal ticket 191726 for follow-up).



[burakOnemli]

Thanks for your reply @mƎALLEm,



I will be waiting for your answer.



Best Regards,

Burak Önemli

[Brian H]

I'm in the same situation with STM32H563IIK6. A connection for RWDS isn't available in HyperBus configuration, only the somewhat-similar DQS is available for Octo-SPI With Data Strobe, which does not offer nCLK option.



Aside: The device I am using (Infineon S27KS0643) does not require differential clock, but does not seem to function correctly with the peripheral in DQS mode.  However, the use of RDWS is necessary as the PSRAM uses it to indicate latency requirement for read commands.  Here is the Infineon datasheet.

In my case, I have not yet ruled out my PCB layout as a cause of problems, but the need for RDWS in STM's peripheral remains.

[burakOnemli]

Hello @mƎALLEm,

Are there any news about the topic or are we still waiting for an answer.

Thanks,

Burak Önemli

[mƎALLEm]

Hello @burakOnemli ,

The limitation is confirmed.

Sorry for any inconvenience.



[burakOnemli]

Thanks for your reply @mƎALLEm ,

Hope that the configuration will be fixed in STM32Cubeide so that it does not cause any further confusions for other people that is working with STM32H563.

Best Regards,

Burak Önemli

[mƎALLEm]

Unmarked the solution, until it ill be fixed.

[mƎALLEm]

Fixed in CubeMX 6.13.0

[Brian H]

This is good news, as it implies that there is not a limitation in the h5 silicon.

When should we expect this version to be published through the in-app update channels?  Right now, the latest update package I'm being shown only includes MX 6.12.1.202409122256:

[...]

Granted it's only been about three hours since your post... :)

[mƎALLEm]

I don't know but you can download V6.13.0 directly from this link.
