STM32H7 SYSCLK stuck at 64 MHz (HSI), PLL not switching

[shri7]

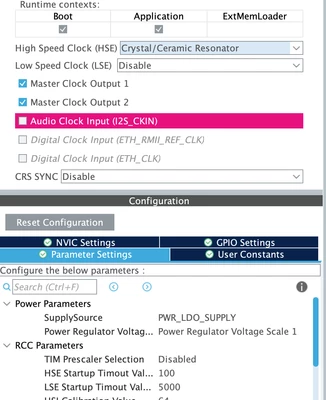

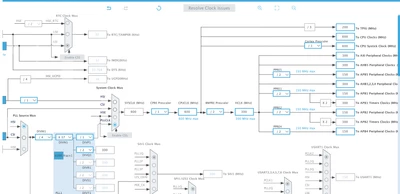

I am using an STM32H7 MCU and configuring the system clock to 400 MHz using CubeMX. The clock tree shows SYSCLK = 400 MHz, and MCO2 is configured to output SYSCLK.

However, when I debug:

HAL_RCC_GetSysClockFreq() returns 64 MHz

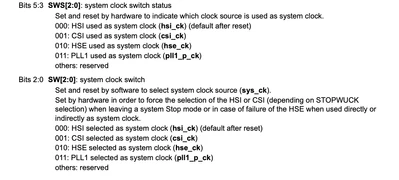

RCC->CFGR shows SWS = 0 (HSI is used)

SW = 0, meaning the system is not switching to PLL



It seems that the PLL is not being selected or is failing to lock, and the system remains on HSI. I have configured PLL and SYSCLK source in CubeMX, but the change is not reflected at runtime.

HAL_RCC_GetSysClockFreq() RETURNS 64MHZ



[AScha.3]

So set the HSE to the real frequency it has on your board...

then choose HSE on clock tree and dont use the frac /fractional setting.

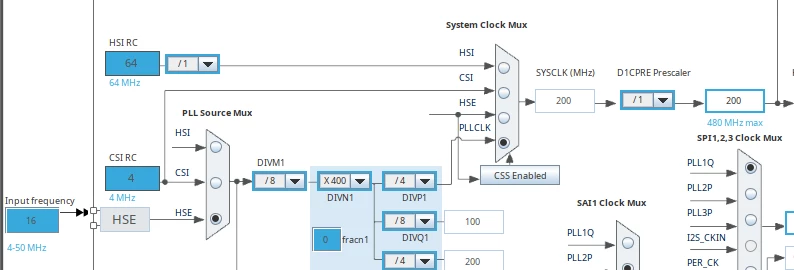

like this:
