STM32H743 ADC oversampling configuration misses macro definitions, leading to compilation errors.

[xushihai]

Hi,

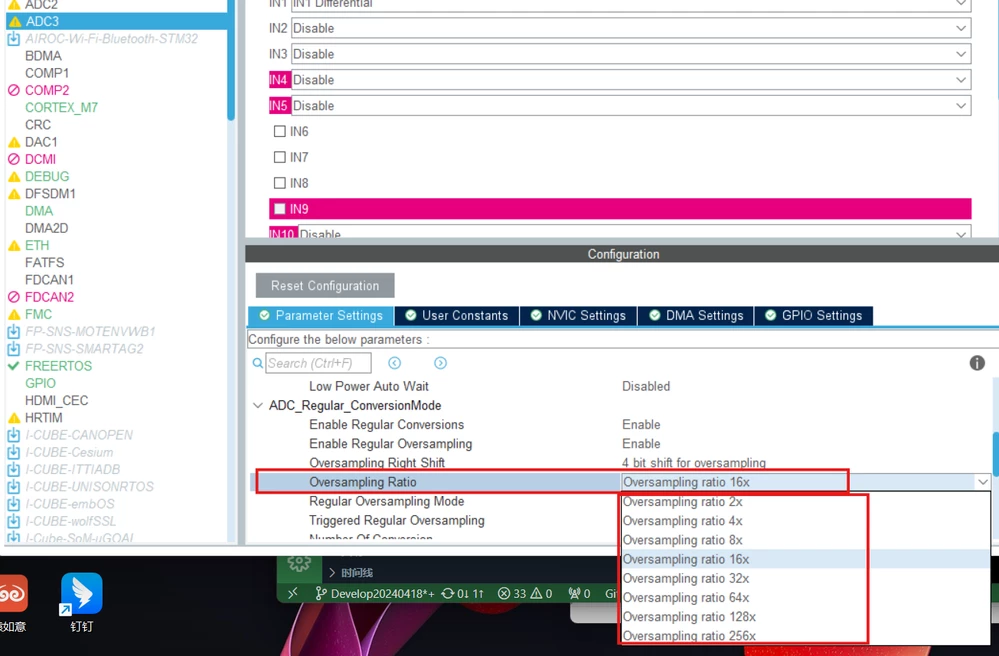

After updating STM32CubeMX to version 6.11.1, while configuring the ADC for the STM32H743, the oversampling settings now only allow pre-defined options. The generated code consequently employs pre-defined macros. However, the macro is not defined in , leading to a missing macro definition error during compilation.ADC_VER_V5_V90stm32h743xx.h

[xushihai]

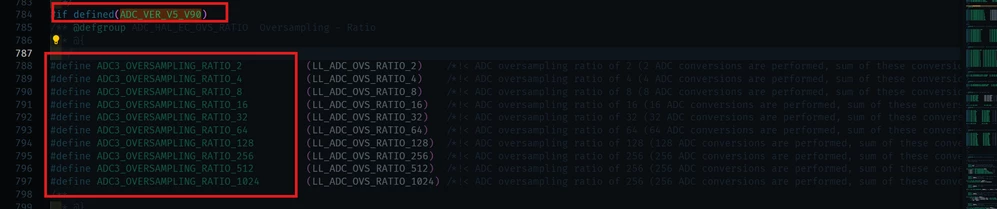

the macro ADC_VER_V5_V90 is not defined in stm32h743xx.h

[AScha.3]

Hi,

try: select HAL driver , generate code and check: working then ?

(I use only HAL lib on my H743 , all working ok. )

[Ghofrane GSOURI]

Hello @xushihai

First let me thank you for reporting.

This is a known issue that  has been already detected and reported to dev team in this ticket 180709  and will be fixed asap.

Thx

Ghofrane
