STM32H743 - Setting External Event source for HRTIM Timer in CubeMX ?

[eBirdman]

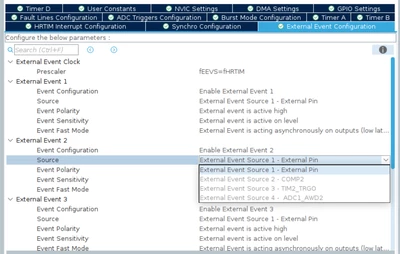

There are 4 external events that can be chosen to trigger and reset individual counters of each HRTIM timer unit in STM32H743 MCU. CubeMX shows those events once the Event Configuration is chosen "Enabled" . Yet only Source 1 is active (allowed to be chosen) but the Source 3 that I need to connect internally to the TIM2 TRGO output is inactive (cannot be chosen) . Why? My attempts to use AI got strange results - after searching the STM documents AI concluded that CubeMX is limited , it allows only external on-pin connections and any internal connections must be manually coded in addition to the generated code.

If it is so then why does CubeMX show those other options yet does not allow to choose them? Or is there way to activate those options ?

Please anybody give me suggestion.

Note: the STM32CubeMX is the latest downloaded and installed yesterday. The MCU library pack is also current.



[mƎALLEm]

Hello,

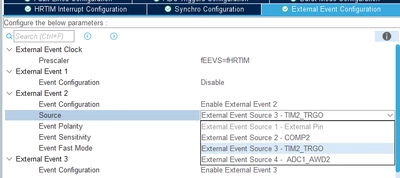

I did the exercise and I can see TIM2 TRGO is not grayed out for HRTIM external event 2 source:

and can be selectable:

What MCU part number you've set in CubeMx?

I've attached my ioc file.

[eBirdman]

Thank you for  giving me hope but I am yet to repeat this in my configuration. My MCU package is STM32H743VITx (100 pins package) . TIM2 TRGO enabled and configured but still greyed out as a choice for HRTIM... I'll try to compare the .ioc files, will try to pinpoint the difference...

Is your CubeMX the latest v.6.17.0 ?

thanks for this....
