STM32U5 IAP_main example NOT working

[jacopokunak]

Hi,

I am using STM32CubeMX version 6.11.0 .

I want to test the "IAP_main" example for the STM32U575I-EV.

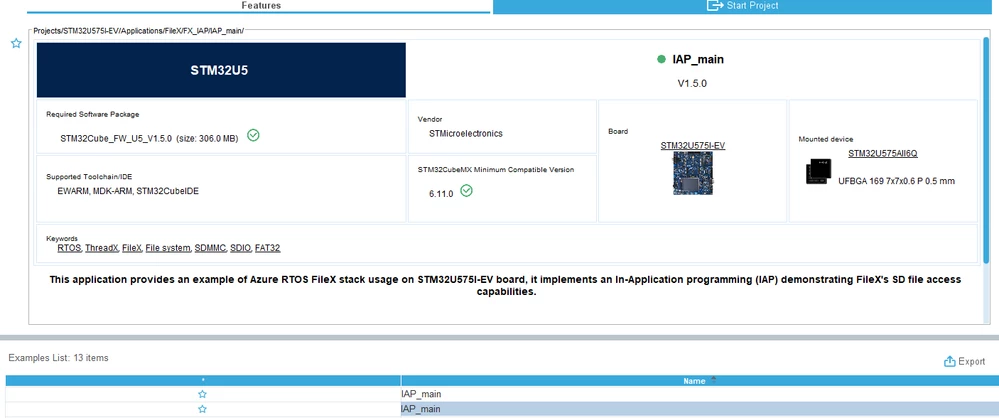

I start the project as follows :

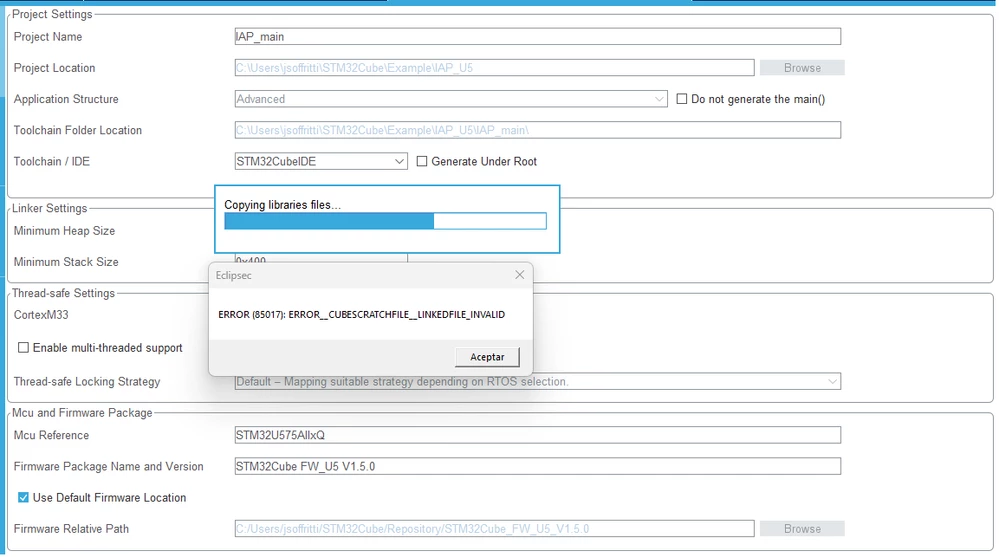

Then when I try to Generate Code for the STM32CubeIDE in CubeMX the following error occurs:

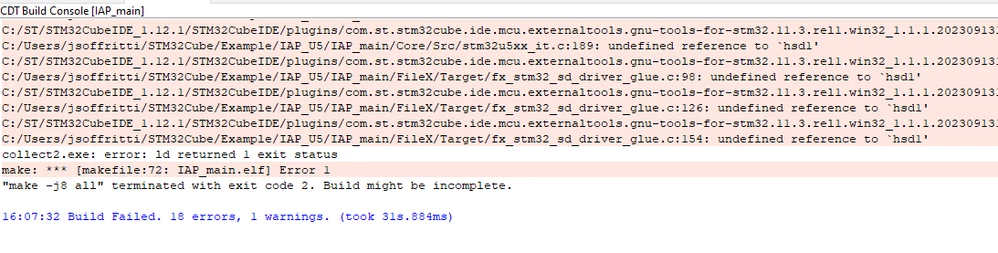

 The code gets generated and I can open it in STM32CubeIDE  but it doesn't build properly:

 The build errors says that the MX functions called in the main file are not linked and there is no reference to them.

I have attached the build log where the errors are displayed.

The project is as it is generated by CubeMX  with no modification made.



What may be happening here ? Some CubeMX libraries that for the STM32U5 do not work well ?

If I launch the same example for the STM32H573I-DK it doesn't have any problem and it builds as expected.

[Imen.D]

Hello @jacopokunak and welcome to the Community :)

I can't reproduce the issue when using the latest release of STM32CubeMX (v6.11.0) and STM32CubeIDE (v1.15.0).

Could you please try with STM32CubeIDE v1.15.0?

Then, please keep me informed about your update.



[AScha.3]

Hi,

Try with standard setting : ..under root ->



[jacopokunak]

Hi AScha.3,

If I select Generate Under Root the first error disappears but new build errors are generated:

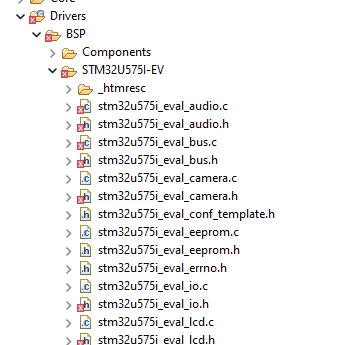

 All these files do not build.

[AScha.3]

So look at the errors , it telling why...especially the first error (often same reason (include missing etc.)).

Or show it. :)

+

Do : generate code (again) in Cube/ioc , then compile again.
