The purpose of the 'if ((hspi->hdmatx->Mode & DMA_LINKEDLIST) == DMA_LINKEDLIST)' in STM32U5 SPI transfer with DMA APIs

[diverger]

Hi,

I'm trying to combine the SPI and GPDMA on STM32U5. In the various SPI transfer APIs with suffix '_DMA', I can see the code below:

 /* Enable the Tx DMA Stream/Channel */
 if ((hspi->hdmatx->Mode & DMA_LINKEDLIST) == DMA_LINKEDLIST)
 {
 if (hspi->hdmatx->LinkedListQueue != NULL)
 {
 /* Set DMA data size */
 hspi->hdmatx->LinkedListQueue->Head->LinkRegisters[NODE_CBR1_DEFAULT_OFFSET] = hspi->TxXferCount;

 /* Set DMA source address */
 hspi->hdmatx->LinkedListQueue->Head->LinkRegisters[NODE_CSAR_DEFAULT_OFFSET] = (uint32_t)hspi->pTxBuffPtr;

 /* Set DMA destination address */
 hspi->hdmatx->LinkedListQueue->Head->LinkRegisters[NODE_CDAR_DEFAULT_OFFSET] = (uint32_t)&hspi->Instance->TXDR;

 status = HAL_DMAEx_List_Start_IT(hspi->hdmatx);
 }
 else
 {
 status = HAL_ERROR;
 }
 }
 else
 {
 status = HAL_DMA_Start_IT(hspi->hdmatx, (uint32_t)hspi->pTxBuffPtr, (uint32_t)&hspi->Instance->TXDR,
 hspi->TxXferCount);
 }

It seems the code try to support the 'DMA_LINKEDLIST' mode. But can't find a way to set it to 'DMA_LINKEDLIST' in the .ioc file. So, how ST expect us to use this mode?

Thanks.

[Imen.D]

Hello @diverger ,

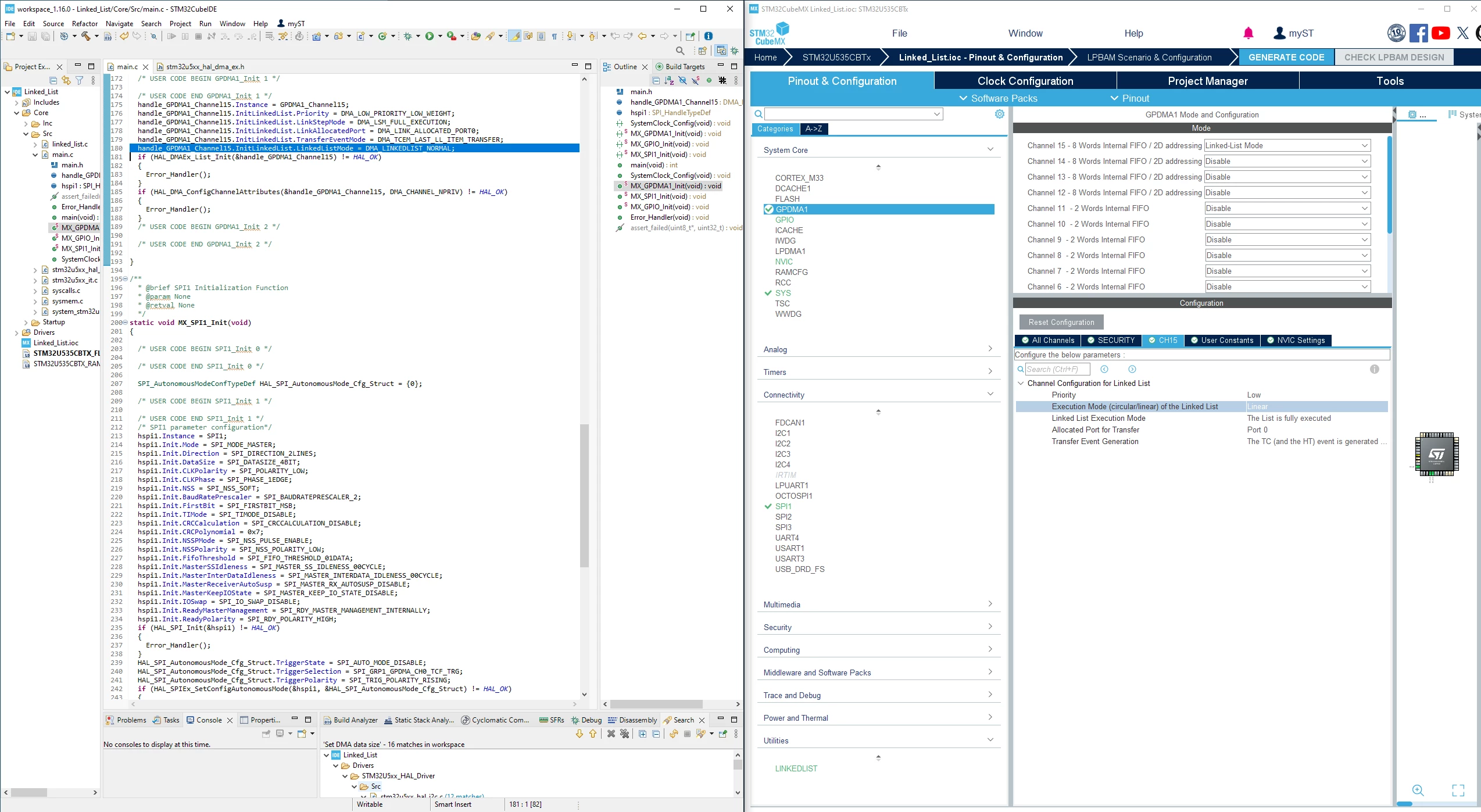

You can specify the DMA_LINKEDLIST mode through GPDMA1 Mode and configuration on STM32CubeMX (please see attachment files).
The Execution Mode can be: Circular or Linear (By Default)

• Circular Mode :



handle_GPDMA1_Channel15.InitLinkedList.LinkedListMode = DMA_LINKEDLIST_CIRCULAR;
#define DMA_LINKEDLIST_CIRCULAR (DMA_LINKEDLIST | (0x01U)​



• Linear Mode :



handle_GPDMA1_Channel15.InitLinkedList.LinkedListMode = DMA_LINKEDLIST_NORMAL;
#define DMA_LINKEDLIST_NORMAL DMA_LINKEDLIST​



[Imen.D]

Hi @diverger ,

Did the solution shared solve your problem?

I'll be waiting for your feedback :)
