timer calculation and clock configuration setting in mxcube

[dee1]

i am using stm32h735g-dk board,trying to interface servo motor with it by using timer5 channel1.please give me step by step explination to set prescalar and arr value

[AScha.3]

What is the "servo motor" ?

show pic.

What signal it needs ? (frequ., pulse timing ...)

[dee1]

motor name is MG90.for every 1sec im trying to run it so how to configure clock for this

sysclock delay also not working.

[AScha.3]

Ok, this :

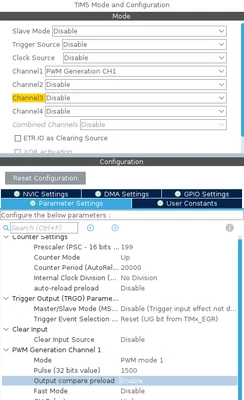

So set TIM5 ch1 : i have clock -> timers 200MHz, so div 199 -> 1us timer tick ;

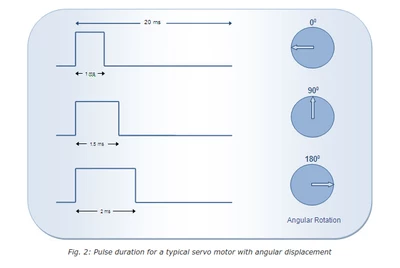

ccr 1500 -> mid position ; set to 1000...2000 for full left/right position.

then in main:

 HAL_TIM_PWM_Start(&htim5, TIM_CHANNEL_1);
