usbx_stm32_device_controllers files not included in cmake build

[Quazar]

CubeMx v6.14, cmake project, stm32h573ritx.



Hi, I am developing a project using threadx and usbx on a h573ritx mcu in cmake using cubemx generator, I have encountered where all but usbx_stm32_device_controllers folder files are included in the CMakeLists.txt. Adding them does seem to fix the issue.

[FBL]

Hi @Quazar

Would you attach IOC file to replicate.

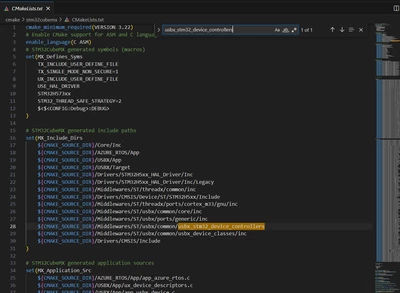

As far as I can see,

${CMAKE_SOURCE_DIR}/Middlewares/ST/usbx/common/usbx_stm32_device_controllers

usbx_stm32_device_controllers is already included.

[Quazar]

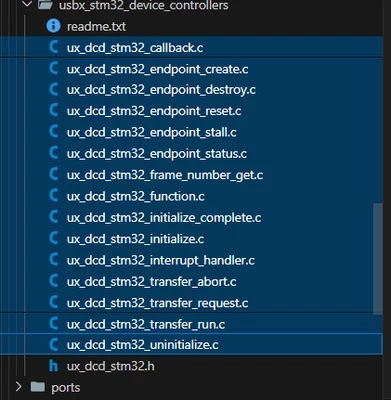

Missing files in cmake/stm32cubemx/CMakeFiles.txt.

In project.zip i added a cleanly generated project using the exact same ioc i have in my project. No .c files under this folder are included in the project.

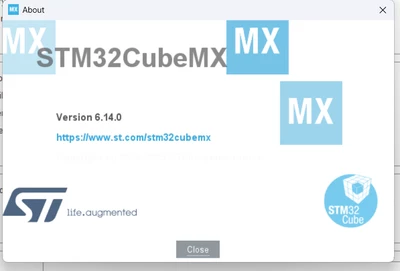

I am using STM32CubeMx version 6.14.0. on windows 11



Steps:

1. coppied ioc to new folder

2. opened ioc with cubemx

3. generated clean cmake project

4. imported project to vscode

5. build project - success

6. added `ux_dcd_stm32_initialize(0, 0);` in USBX/App/app_usbx_device.c:MX_USBX_Device_Init()

7. build project - fail

8. added *.c files to sources in ./CMakelists.txt

9. build project - success

[FBL]

Thank you for the detailed steps @Quazar. An internal ticket 206676 is submitted to dedicated team.

[FBL]

Hi @Quazar

After checking with CubeMX team, they recommend cleaning your environment by deleting .stm32cubemx , this may solve the issue.

[MR5]

I ran into the exact same problem but deleting ~/.stm32cubemx didn't fix it for me. I'm also on CubeMX 6.14.0, running Linux.

For what it's worth, here's a sample project illustrating the problem:
https://github.com/mrubli/stm32u5-usbx-cmake-test

Obviously, re-generating the code in CubeMX overwrites the manual addition of the missing source files in CMakeLists.txt (the last commit), so it's not a proper solution.

@FBL What was the outcome of your internal ticket? Is this a confirmed bug and your earlier suggestion is merely a workaround? Or was the team unable to reproduce the issue? Anything else I can try?

@Quazar Did cleaning the environment actually solve the problem for you?

[Quazar]

No it didn't, which CMakeLists.txt did you change, because the CMakeLists in main folder isn't overwriten

[MR5]

Thanks, then we're still waiting for a solution from ST. I would have been very surprised if just clearing .stm32cubemx fixed it because the problem is reproducible across machines.

Right, I had to change cmake/stm32cubemx/CMakeLists.txt in the example. For my actual project I'm likely going to just post-process the generated file because this isn't the only problem I'm having with generated CMake files.

[FBL]

Hi @Quazar @MR5

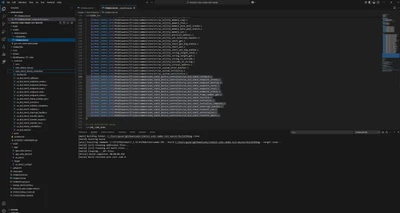

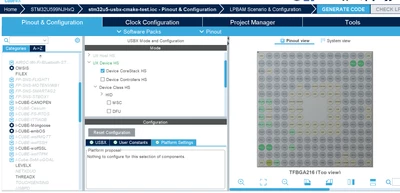

I let my colleague @Ghofrane GSOURI further investigate the issue from MX point of view.
