Validation on target hal driver error

[Pinagadi_Meghana]

I tried to validate on desktop... an ai model but ended with this error...

please help me with this error

[Andrew Neil]

---

@Pinagadi_Meghana wrote:

I tried to validate on desktop

---

But the thread title says "on target" - so which is it?



---

@Pinagadi_Meghana wrote:

---

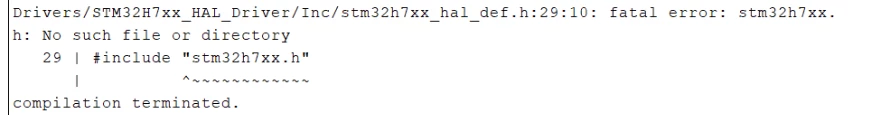

So it's telling you that it can't find the file stm32h7xx.h

Therefore you need to check two things:

1. Does that file actually exist anywhere in your project?
   If not, then that obviously explains why the compiler can't find it!

2. If it does exist, is it in a location where the compiler will find it?
   ie, are you Include Paths correctly configured?



BTW: it's better to post the error messages as text - rather than an image:

https://community.st.com/t5/community-guidelines/how-to-insert-source-code/tac-p/752812/highlight/true#M59

[Pinagadi_Meghana]

Sorry... It is validation on target only...

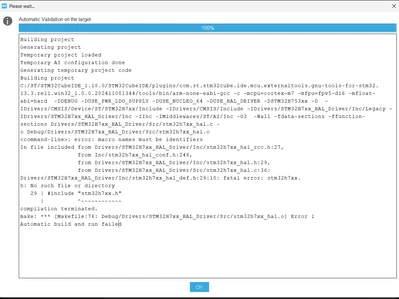

the error message is

Building project
Generating project
Temporary project loaded
Temporary AI configuration done
Generating temporary project code
Building project
C:/ST/STM32CubeIDE_1.18.0/STM32CubeIDE/plugins/com.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.13.3.rel1.win32_1.0.0.202411081344/tools/bin/arm-none-eabi-gcc -c -mcpu=cortex-m7 -mfpu=fpv5-d16 -mfloat-abi=hard  -DDEBUG -DUSE_PWR_LDO_SUPPLY -DUSE_NUCLEO_64 -DUSE_HAL_DRIVER -DSTM32H753xx -D  -IDrivers/CMSIS/Device/ST/STM32H7xx/Include -IDrivers/CMSIS/Include -IDrivers/STM32H7xx_HAL_Driver/Inc/Legacy -IDrivers/STM32H7xx_HAL_Driver/Inc -IInc -IMiddlewares/ST/AI/Inc -O3  -Wall -fdata-sections -ffunction-sections Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal.c -o Debug/Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal.o
<command-line>: error: macro names must be identifiers
In file included from Drivers/STM32H7xx_HAL_Driver/Inc/stm32h7xx_hal_rcc.h:27,
                 from Inc/stm32h7xx_hal_conf.h:246,
                 from Drivers/STM32H7xx_HAL_Driver/Inc/stm32h7xx_hal.h:29,
                 from Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal.c:36:
Drivers/STM32H7xx_HAL_Driver/Inc/stm32h7xx_hal_def.h:29:10: fatal error: stm32h7xx.h: No such file or directory
   29 | #include "stm32h7xx.h"
      |          ^~~~~~~~~~~~~
compilation terminated.
make: *** [Makefile:76: Debug/Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal.o] Error 1
Automatic build and run failed
