Vbat ADC setting is missing in the new version

[Eralp]

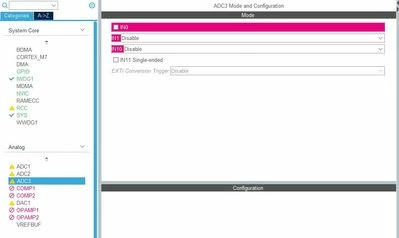

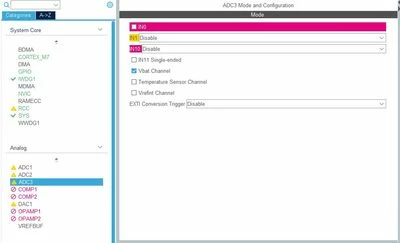

Hi, i'm using STM32H750VB and i could previously make the Vbat measurement setting under Analog->ADC3 in the old version of cubemx (6.10), but this option has been removed in the new version (6.11). Also the temperature sensor setting is lost.

Is this a bug ?

[mƎALLEm]

Hello,

It’s a known regression in CubeMx version V6.11.

See and follow this thread.

[Eralp]

I fixed it myself because I didn't have time to wait. Thanks for reply.

Here is the fix in ADC-aditf5_v3_0_Cube_Modes.xml file for STM32H7



For Vbat Channel:

From:

<Mode Name="IN-Vbat" RemoveCondition="(DIE480 &amp;!($IpNumber=2)) | !(DIE485&amp;($IpNumber=2))" UserName="Vbat Channel">

To:

<Mode Name="IN-Vbat" RemoveCondition="(DIE480 &amp;!($IpNumber=2)) | (DIE485&amp;!($IpNumber=2))" UserName="Vbat Channel">



For Temperature Sensor Channel:

From:

<Mode Name="IN-TempSens" RemoveCondition="(DIE480 &amp;!($IpNumber=2)) | !(DIE485 &amp;($IpNumber=1))" UserName="Temperature Sensor Channel">

To:

<Mode Name="IN-TempSens" RemoveCondition="(DIE480 &amp;!($IpNumber=2)) | (DIE485 &amp;!($IpNumber=1))" UserName="Temperature Sensor Channel">



For Vrefint Channel:

From:

<Mode Name="IN-Vrefint" RemoveCondition="(DIE480 &amp;!($IpNumber=2)) | !(DIE485 &amp;($IpNumber=1))" UserName="Vrefint Channel">

To:

<Mode Name="IN-Vrefint" RemoveCondition="(DIE480 &amp;!($IpNumber=2)) | (DIE485 &amp;!($IpNumber=1))" UserName="Vrefint Channel">



[mƎALLEm]

Thank you for sharing this for other members.
