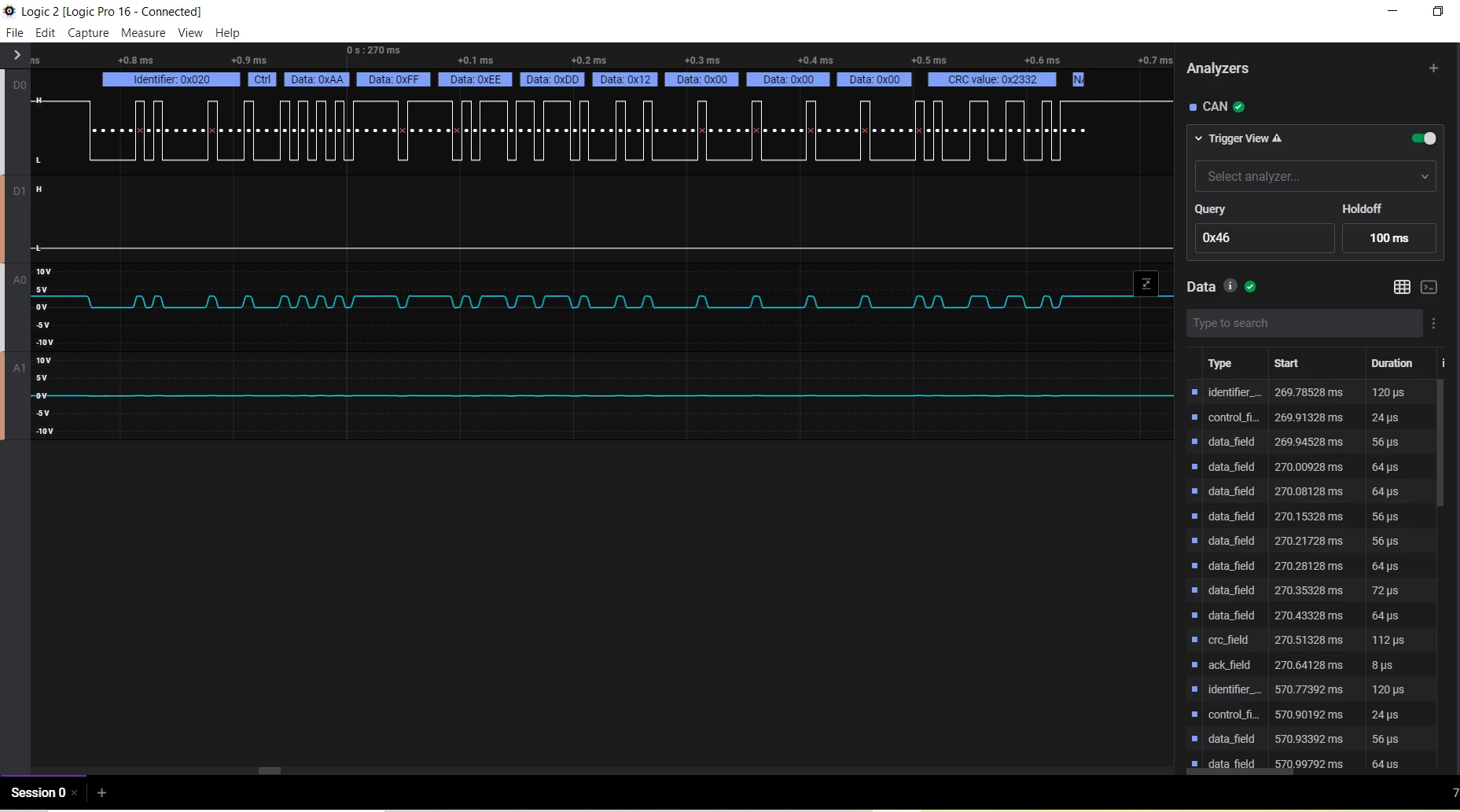

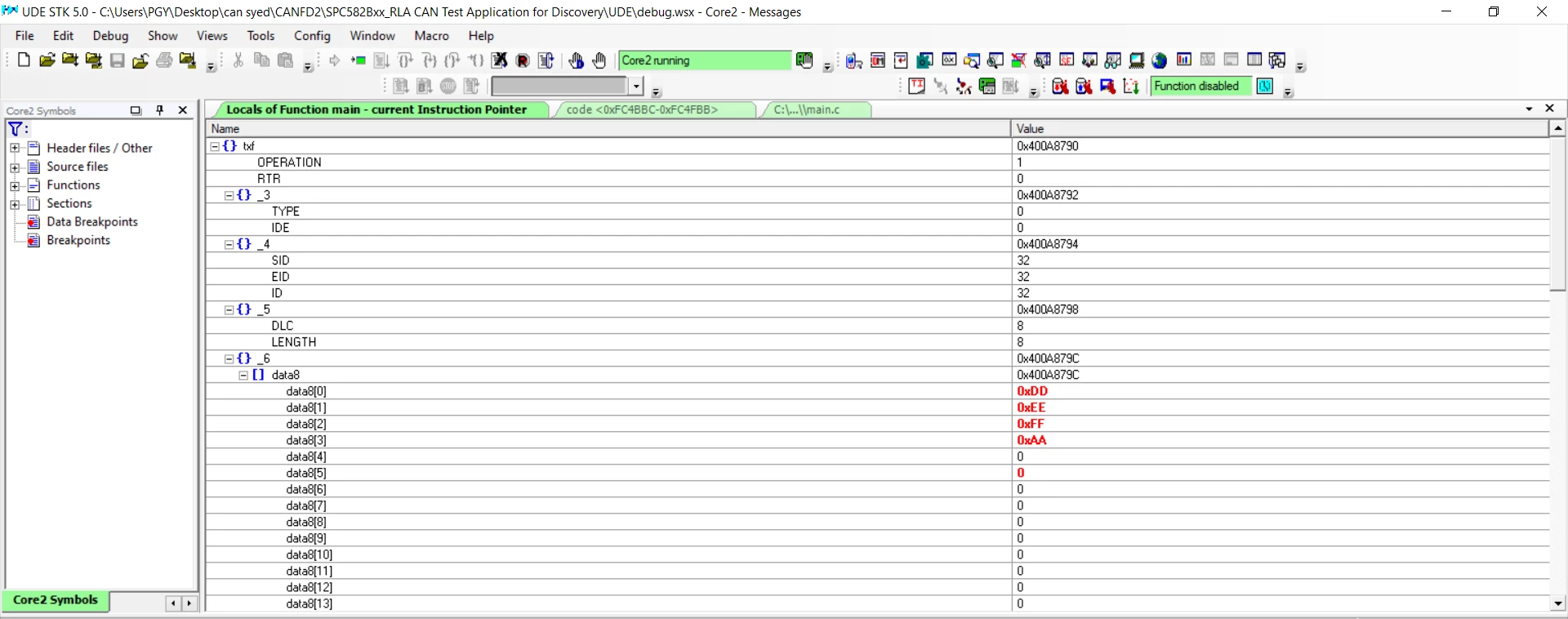

i am doing can interface i got output in normal can but i am not get proper can fd waveform but i can see data in local variable watch window let me st can fd frame format. let me know

[DCARR]

Hi,

please take care to set both FDF and BRS in tx buffer element before start the message transmission.

Looking at the waveform seems that not both bits are recessive :-).

Best regards

Domenico

[Sal-a.1]

i have attached debugging output in this operation 1 denoted by can fd. but i cannot see the FDF bit in this wave form.
