Programming and Debugging SPC563M-DISP using AEK-MCU-SPC5LNK.

[Manny]

Hi,

I am using AutoDevKit to develop an application on the SPC563M-DISP. I have a AEK-MCU-SPC5LNK debugger and want to program and debug my software on it. As I know this version only support OpenOCD, but the problem is that I am unable to find the ".cfg" file in the OpenOCD folder, inside the AutoDevKit software.

1. Where Can I find the ".cfg" file for the SPC563?

2. Can I debug and Program the SPC563 using AEK-MCU-SPC5LNK and OpenOCD?

3. Can the AEK-MCU-SPC5LNKU (that uses UDE) program and debug SPC563M-SIP?

I currently have the 'SPC5LNK ' and want to use that for developming my app on SPC56, but If that is not possible I can get the SPC5LNKU (UDE version) also, but wants to make sure that I will work.

[Max VIZZINI]

hi,

For SPC56x you CANNOT use OpenOCD.

You can use PLS UDE with AEK-MCU-SPC5LNKU.

Best Regards,

AutoDevKit Team

[daynialkhan]

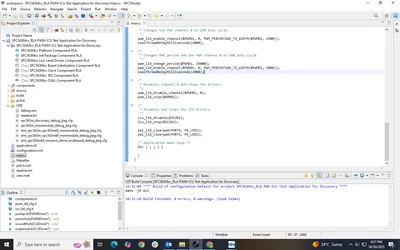

I am using AEK-MCU-SPC5LNKU.and installed spc5-studio. when i try to run debug, nothing happens

[Max VIZZINI]

it is not in SPC5Studio, it is PLS UDE a different program.

[daynialkhan]

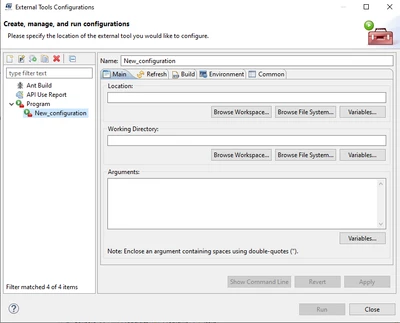

I already have installed UDE-STK-2021, here is the external tool configuration!
do i need to update?



[Max VIZZINI]

you just need the board connected via USB, the USB driver properly recognizing the PLS ports in Windows and the .elf file found in the project folder after source code compilation is completed.

[daynialkhan]

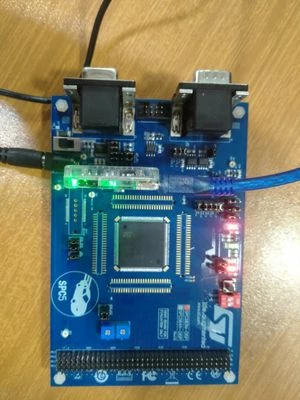

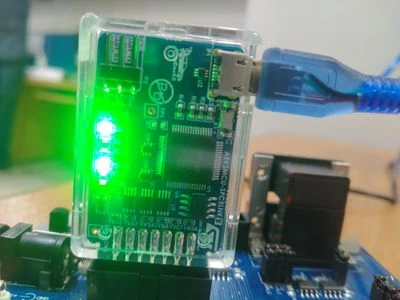

what is the problem here!

[SRomeo]

Hi there,
I see nothing wrong on your shared pictures.
Now you should flash your board using PLS UDE. (use the .wsx file, you will find it into your UDE folder)

In case you want an "AutoDevKit compliant" alternative, we suggest the following MCU evaluation boards:

• AEK-MCU-C1MLIT1 (1core - 1M ROM )
• AEK-MCU-C4MLIT1 (2cores - 4M ROM )
• AEK-MCU-C4MINI  (2cores - 4M ROM )
  each equipped with:
  GPIO, SPI, ADC, I2C, UART, CAN, LIN, STM, PIT and PWM peripherals.

  In AutodevKit Studio you will find a wide variety of ready-to-use projects, granting a jump-start for your applications!
  We highly recommend to use one of our alternatives!

  BR,
  Simone
  AEK_team

[daynialkhan]

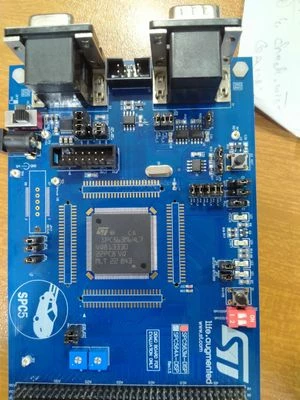

All the jumper settings ok??
as i have installed UDE starter kit 2021.05

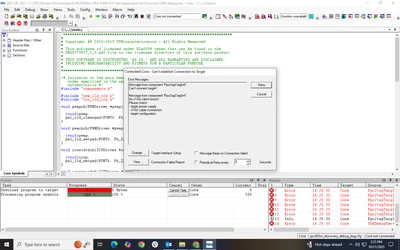

and getting error  attached in pic. below





[Max VIZZINI]

Hi,

This is an old board I am not familiar with, therefore I am not sure about the jumpers.

On the other side, PLS is trying to access the board and somehow it cannot.

So, two simple points to check:

- Is the board turned on and properly connected?

- are the FTDI drivers properly installed in your Windows? Have you checked if the USB port is recognizing the PLS UDE?

Best Regards,

AutoDevKit Team
