PUSH BUTTON

[Angle]

May i know in what library used for push button or the example code for push button?

[Giuseppe DI-GIORE]

In SPC5Studio, please, see EIRQ demos.

Push button are usually connected to:

• SIUL2 pins with external interrupt capabilities
• Wakeup Unit pins with interrupt capabilities

Regards.

[Angle]

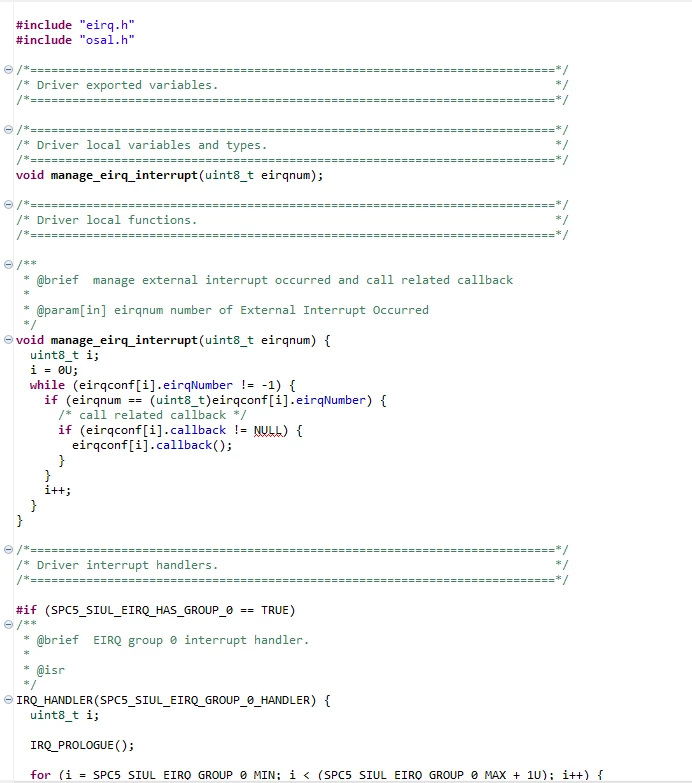

is it this one ?

[Giuseppe DI-GIORE]

yes, this is the code to manage the EIRQ interrupts.

EIRQ can be configured via IRQ graphical configurator:

1) click on IRQ componnt

2) select EIRQ

3) configure which EIRQ to use and which callback to connect to selected EIRQ

4) configure rising/falling edge and enable filtering of glitches

Regards,
