XYZ values from AIS2IH are inconsistent with actual values

[snack]

Hi,



Post-development testing of the acceleration sensor reveals that the collected XYZ axis values are inconsistent with the actual physical acceleration values, and one axis continuously outputs a value of 0.

What is the specific corresponding relationship between the sensor’s feedback value and the actual physical value?

I also hope you can provide relevant technical parameters (such as sensitivity, zero offset) and calculation formulas for reference, so as to help us troubleshoot the problem quickly.

thank you!!

[Federica Bossi]

Hi @snack ,

How are you acquiring data? You can use our official examples on Github to implement your code.

[snack]

Thank you for your reply!

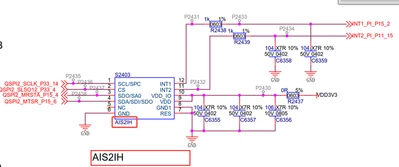

We have used the official code, but the measured values still do not match the actual situation. The most intuitive example is that when we apply acceleration on the X-axis, the X-value reads 0 while other axes show values. Could it be that our hardware connection method is incorrect? Could you please help evaluate it? Here is our schematic diagram.

Thank you very much!



[Andrew Neil]

---

@snack wrote:

inconsistent with the actual physical acceleration values

---

How do you measure those actual physical acceleration values ?



---

@snack wrote:

technical parameters (such as sensitivity, zero offset) and calculation formulas for reference

---

That would all be in the datasheet ?

See also the supporting documentation - on the 'Documentation' tab of the Product Page.

Also MEMS-Studio and C-Driver-MEMS etc on the 'Tools & Software' tab of the Product Page.



[snack]

Thank you for you reply!

When we apply acceleration to the X-axis, the displayed acceleration value of the X-axis is 0, which is obviously incorrect. We have referred to the data sheet and official code, but still failed to find a solution. Here is our hardware schematic diagram. Could you please help evaluate whether it is reasonable? Thank you very much!



[Andrew Neil]

Note that everyone can see all replies - there's no need to repeat stuff to each contributor.

You can mention multiple people in one post using '@'



---

@snack wrote:

when we apply acceleration on the X-axis, the X-value reads 0 while other axes show values

---

Do you see the same when you move in the other axes?

At rest, do you see ±1g in each axis, according to orientation?



---

@snack wrote:



We have used the official code

---

What code, exactly?

Post a minimum but complete example which illustrates the issue.

How to insert source code



PS:

---

@snack wrote:

the displayed acceleration value of the X-axis is 0

---

Maybe there's something wrong in how you display it, and/or how you process it?

Have you looked at the raw values received direct from the sensor?
