FMC + LCD STM32H7S7L8 issue

[Hamady]

Hello,

I'm working on a custom STM32H7S7L8 board with this display

https://newhavendisplay.com/fr/2-4-tft-lcd-ips-high-brightness-display/

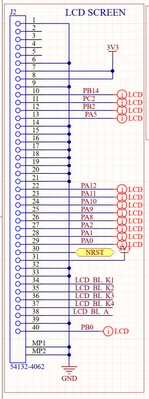

Here the schematic of the connection in 8 bit mode and clock three

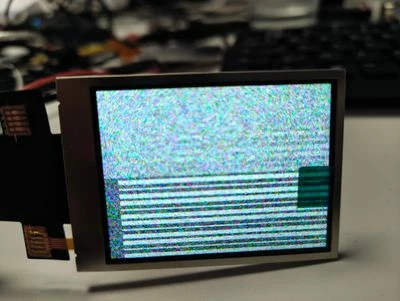

The backlight and display are working but I get a glitch image when i try to fill the display.

with this code i can see the display turning off and on so the command are working
Below the whole project zip

	 LCD_Fill(0xFFFF, 0, 0, 10, 10);
	 HAL_Delay(1000);
	 ST7789H2_DisplayOff();
	 LCD_Fill(0xFFFF, 0, 0, 10, 10);
	 HAL_Delay(1000);
	 ST7789H2_DisplayOn();

Does someone have a idea to make this work

Thanks

[mƎALLEm]

Hello,

Did you modify this line in MPU config or it was generated by CubeMx:

 MPU_InitStruct.SubRegionDisable = 0x0;

 Normally it should be 0x87 not 0x0!

[mƎALLEm]

Also these lines?:

 MPU_InitStruct.AccessPermission = MPU_REGION_FULL_ACCESS;
 MPU_InitStruct.DisableExec = MPU_INSTRUCTION_ACCESS_ENABLE;



[Hamady]

@mƎALLEm Thanks for the response
It was generated by cube MX to test if the issue was MPU usage but even without the MPU it doesn't work



[mƎALLEm]

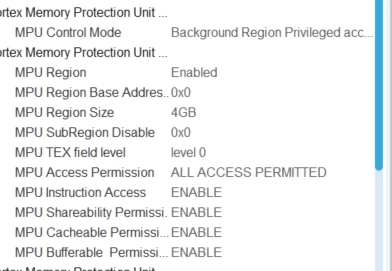

Did you change the default MPU config in CubeMx?

[Hamady]

Yeah i made the test without MPU and after enabled MPU that give permsission to the whole chip

[mƎALLEm]

You should not modify that MPU region, keep it as is.

You need to add another MPU config for the LCD region and you should disable the cacheability for that region. You need also to enable the cache.

[Hamady]

@mƎALLEm



thanks for the response

I've done it like this but nothing has changed

static void MPU_Config(void)
{
 MPU_Region_InitTypeDef MPU_InitStruct = {0};

 /* Disables the MPU */
 HAL_MPU_Disable();

 /** Initializes and configures the Region and the memory to be protected
 */
 MPU_InitStruct.Enable = MPU_REGION_ENABLE;
 MPU_InitStruct.Number = MPU_REGION_NUMBER0;
 MPU_InitStruct.BaseAddress = 0x0;
 MPU_InitStruct.Size = MPU_REGION_SIZE_4GB;
 MPU_InitStruct.SubRegionDisable = 0x0;
 MPU_InitStruct.TypeExtField = MPU_TEX_LEVEL0;
 MPU_InitStruct.AccessPermission = MPU_REGION_FULL_ACCESS;
 MPU_InitStruct.DisableExec = MPU_INSTRUCTION_ACCESS_ENABLE;
 MPU_InitStruct.IsShareable = MPU_ACCESS_SHAREABLE;
 MPU_InitStruct.IsCacheable = MPU_ACCESS_CACHEABLE;
 MPU_InitStruct.IsBufferable = MPU_ACCESS_BUFFERABLE;

 HAL_MPU_ConfigRegion(&MPU_InitStruct);

 /** Initializes and configures the Region and the memory to be protected
 */
 MPU_InitStruct.Number = MPU_REGION_NUMBER1;
 MPU_InitStruct.BaseAddress = 0x60000000;
 MPU_InitStruct.Size = MPU_REGION_SIZE_128KB;
 MPU_InitStruct.IsCacheable = MPU_ACCESS_NOT_CACHEABLE;

 HAL_MPU_ConfigRegion(&MPU_InitStruct);
 /* Enables the MPU */
 HAL_MPU_Enable(MPU_PRIVILEGED_DEFAULT);

}

[Hamady]

Okay I understand it,

So i changed as you said

Thanks !
