I'm trying to program option bytes in STM32G4 series by Keil, I did steps below but still some problem exists:Add "STM32G4xx_SB_OPT.s" file from Keil pack directory to projectAdd "STM32G4xx dual bank Flash Options" algorithm in Flash Download tabI still got a "Contents mismatch at: 1FFFF7802H", and the option byte semms not programmed right yet. Anyone successed using "STM32G4xx dual bank Flash Options" program the option bytes? What points I missed?

Associate III

Question

Option Bytes programming by Keil

I'm trying to program option bytes in STM32G4 series by Keil, I did steps below but still some problem exists:

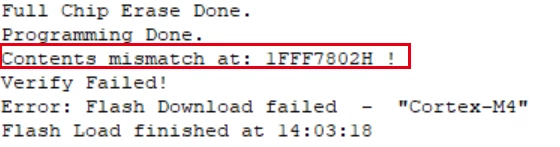

I still got a "Contents mismatch at: 1FFFF7802H", and the option byte semms not programmed right yet.

Anyone successed using "STM32G4xx dual bank Flash Options" program the option bytes? What points I missed?

Visitor II

Hi,

Items 1 and 2 must be consistent.
If you use the dual bank for the *.s you have to use the dual bank for the Flash Options as well.

STM32G4xx_DB_OPT.s ---> STM32G4xx dual bank Flash Options

STM32G4xx_SB_OPT.s ---> STM32G4xx singol Flash Options
