Problem reading MPU-6050 sensor values with STM32F103RB via I2C
I'm trying to read data from my MPU-6050 (a 3-axis accelerometer and gyroscope from DFRobot) using an STM32F103RB microcontroller, but I'm running into an issue.
The sensor communicates via I2C. It's powered by 3.3V from the STM32, and I've used once 1,2kΩ and other time 10kΩ pull-up resistors on the SDA and SCL lines to 3.3V.

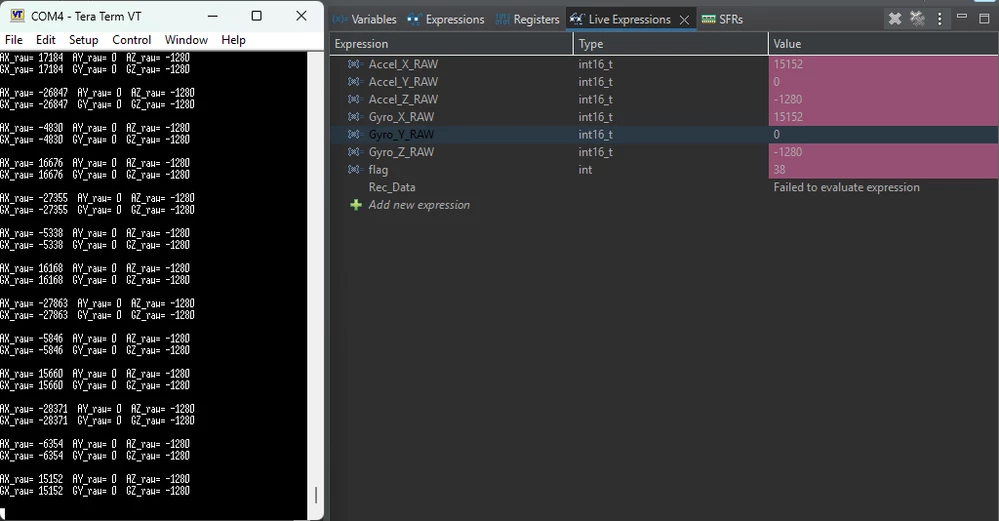

During program debugging, the sensor is left completely stationary. However, in the "Live Expressions" view, the raw values from the sensor are inconsistent. The values for the corresponding accelerometer and gyroscope axes are always the same, which seems strange.
Here are the raw readings from the first few reads:
First Read:
Accel_X_RAW & Gyro_X_RAW: -4017
Accel_Y_RAW & Gyro_Y_RAW: 32
Accel_Z_RAW & Gyro_Z_RAW: 30476
Second Read:
Accel_X_RAW & Gyro_X_RAW: 0
Accel_Y_RAW & Gyro_Y_RAW: 0
Accel_Z_RAW & Gyro_Z_RAW: -1280
Third Read:
Accel_X_RAW & Gyro_X_RAW: -1280
Accel_Y_RAW & Gyro_Y_RAW: 0
Accel_Z_RAW & Gyro_Z_RAW: -1280
Fourth Read:
Accel_X_RAW & Gyro_X_RAW: -2559
Accel_Y_RAW & Gyro_Y_RAW: 0
Accel_Z_RAW & Gyro_Z_RAW: -1280
In my program, I have a flag variable that counts the number of times the loop has executed.
On subsequent reads, only the Accel/Gyro_X_RAW value changes, decrementing by roughly 1279. When it reaches around -3200, it wraps around to approximately +3200. The Y and Z axes remain unchanged at 0 and -1280, respectively.
This pattern continues until the flag variable reaches a value of 264. At that point, the Accel/Gyro_Y_RAW value changes from 0 to 256, while the X-axis continues its previous pattern of change and Z-axis stays still at value -1280.
Has anyone encountered a similar issue or can spot what I might be doing wrong? I'd appreciate any help or suggestions. Thank you!
