stm32g031:trying to communicate with MC33HB2000EX over SPI

[SGian.1]

Hi there !

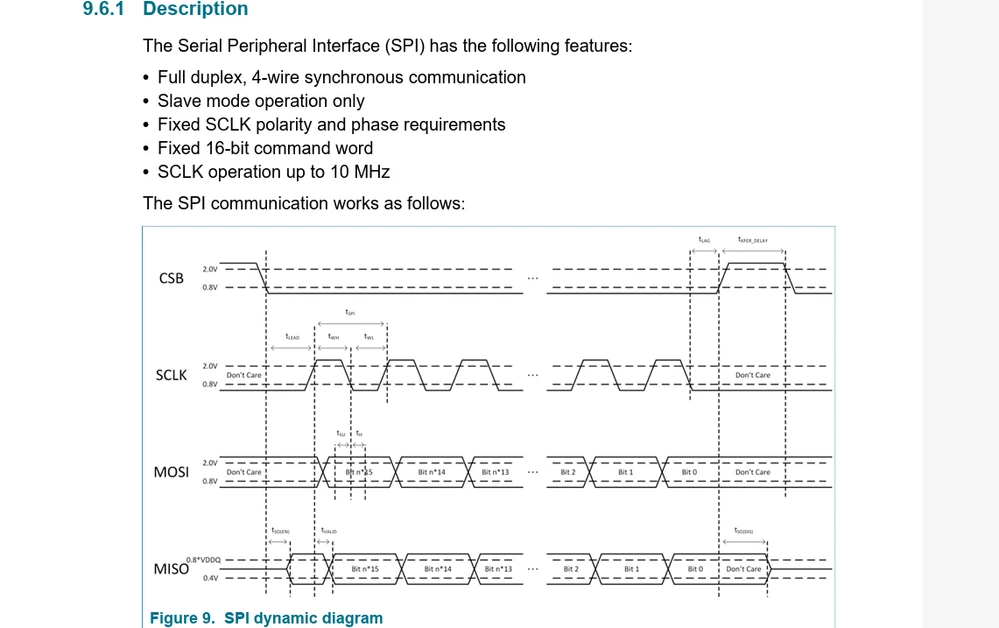

here i'm for another question, are a day i'm go crazy with the SPI interface . I try to comunicate with MC33HB2000EX 10 A H-bridge, SPI programmable brushed DC motor driver. The datasheet write that:

So i configure my SPI :

and when i send data with

uint16_t spiData=0x2000;
uint16_t spiRxData = 0x0000;

i reset the CS pin

HAL_SPI_TransmitReceive_IT(&hspi1,(uint8_t*)&spiData,(uint8_t*)&spiRxData,1);

i wait the callback function and i set the CS pin

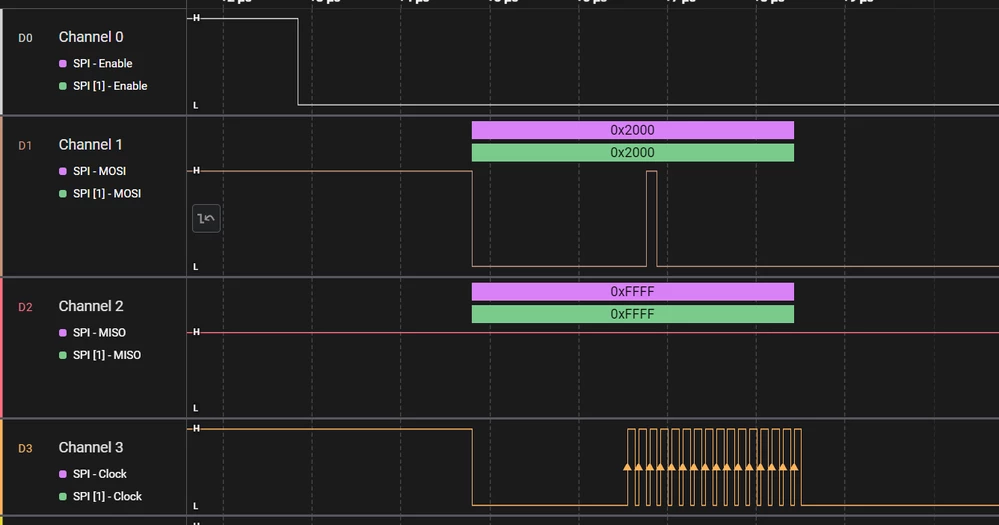

no one data come out from MISO and i put on my analaizer and i don't understand why the clock start to logic high and no from logic low i don't know if is the real problem



I hope someone can help me

Thank you

Sergio

[AA1]

First you need to understand how SPI works. To receive, you need to send something. I only see 16 clocks.

Try this:

// send command
HAL_SPI_Transmit_IT(&hspi1,(uint8_t*)&spiData,1);

// receive response
HAL_SPI_TransmitReceive_IT(&hspi1,(uint8_t*)&spiData,(uint8_t*)&spiRxData,1);



[SGian.1]

i try but still dosen't work

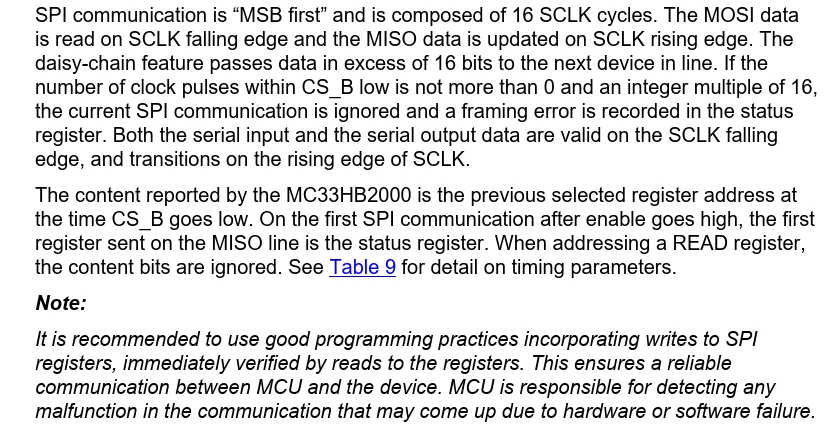

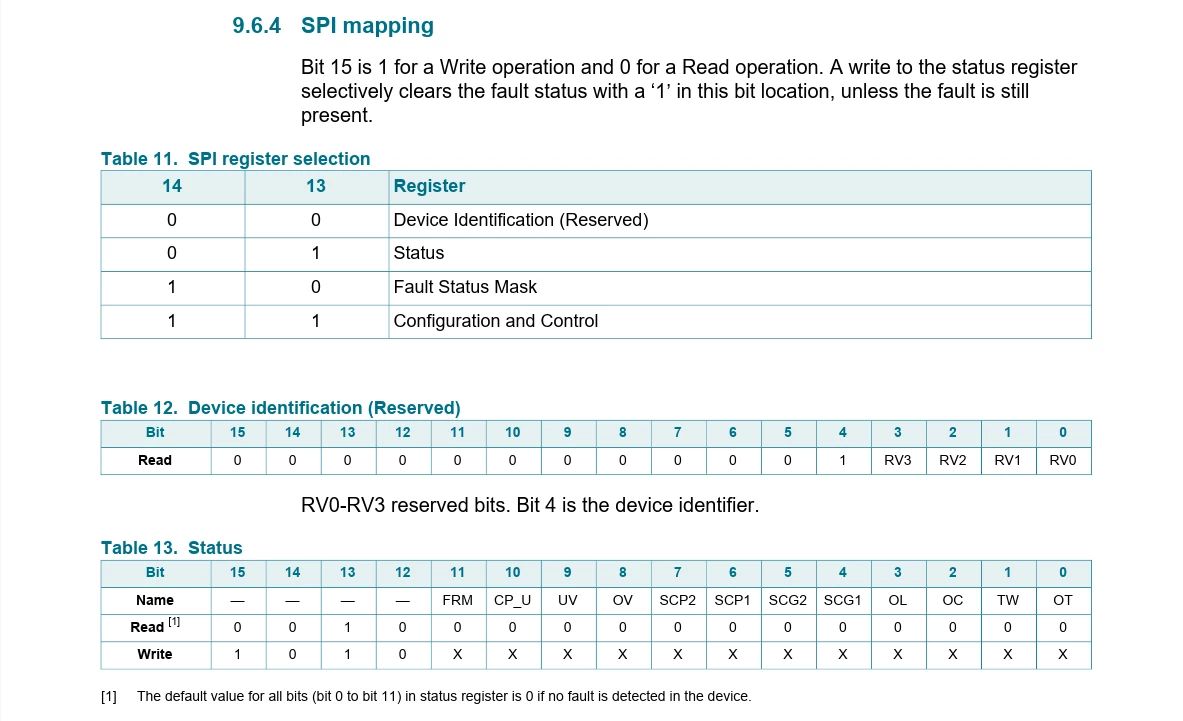

from the datasheet

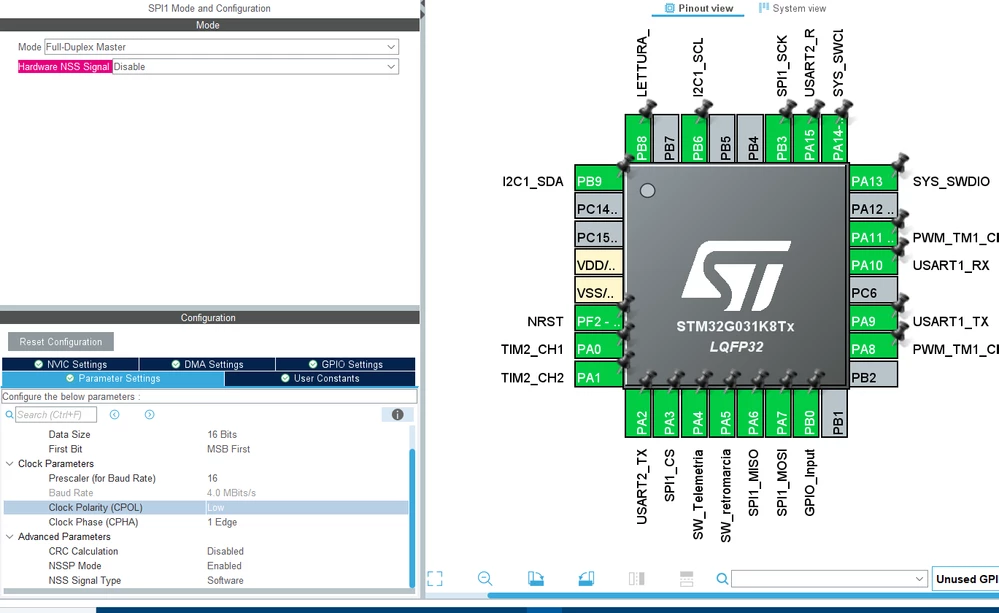

and i configurate my SPI in this way :

CPOL = low

CPHA 0 2 Edge

Baud rate 500Khz



and my code is very simple

void HAL_SPI_TxRxCpltCallback(SPI_HandleTypeDef * hspi)
{

	test=1;
}
void HAL_SPI_TxCpltCallback(SPI_HandleTypeDef * hspi)
{
 test=1;
}

HAL_Delay(500);
HAL_GPIO_WritePin(GPIOA, SPI1_CS_Pin, GPIO_PIN_RESET);
HAL_SPI_Transmit_IT(&hspi1,(uint8_t*)&spiData,1);
while(test==0);
test=0;
HAL_SPI_TransmitReceive_IT(&hspi1,(uint8_t*)&spiData,(uint8_t*)&spiRxData,1);
while(test==0);
 while (1)
 {
 /* USER CODE END WHILE */

 /* USER CODE BEGIN 3 */
 }



[AA1]

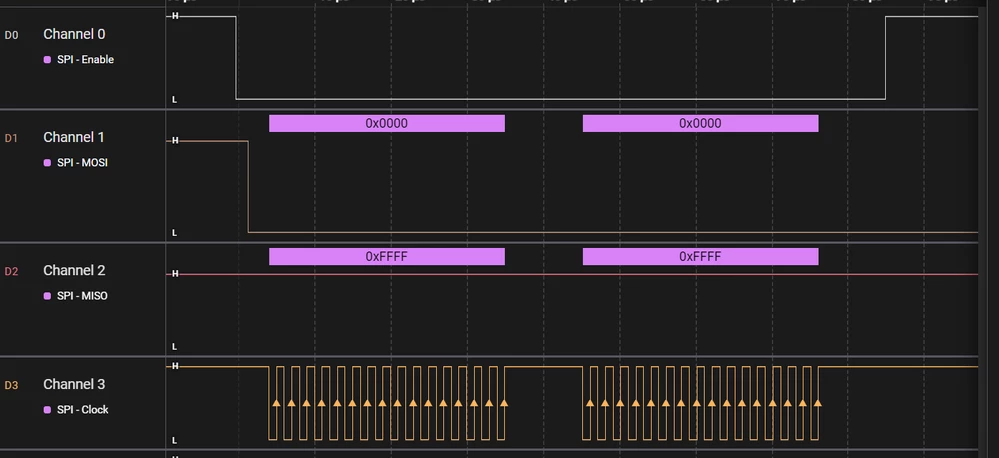

As you did before, you should send 0x2000 and you are sending 0x0000.
