The image from OV7670 is not displayed clearly on ILI9341

https://community.st.com/t5/others-stm32-mcus-related/ov7670-stm32f429-dcmi-dma-ili9341-spi-lcd-works-no-camera-image/td-p/864331#M9012 I am trying to display a camera image on an LCD using the STM32F429I-DISCO board, an OV7670 camera module, and an ILI9341 display.

↑This is a follow-up to my previous post.

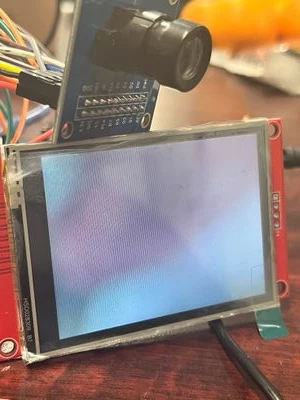

However, the displayed image is extremely blurred, and it is difficult to recognize what is shown on the screen.

What should I check or adjust to display the image clearly?

Technical Moderator

Hello @chachamaru;

Are you able to display image or color from a frame buffer?

Please look at Introduction to LCD-TFT display controller (LTDC) on STM32 MCUs - Application note application note section 7 LTDC application examples and get inspired to check the LTDC settings.

Thank you.

Kaouthar
