Best answer by Andrew Neil

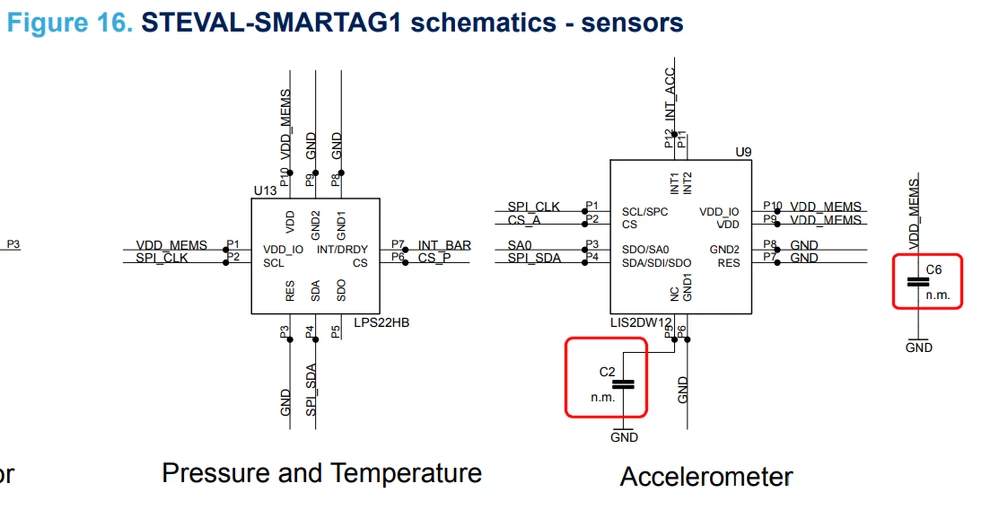

You mean these:


https://www.st.com/resource/en/user_manual/um2427-how-to-use-the-st-nfc-sensor-tag-evaluation-board-stmicroelectronics.pdf#page=25

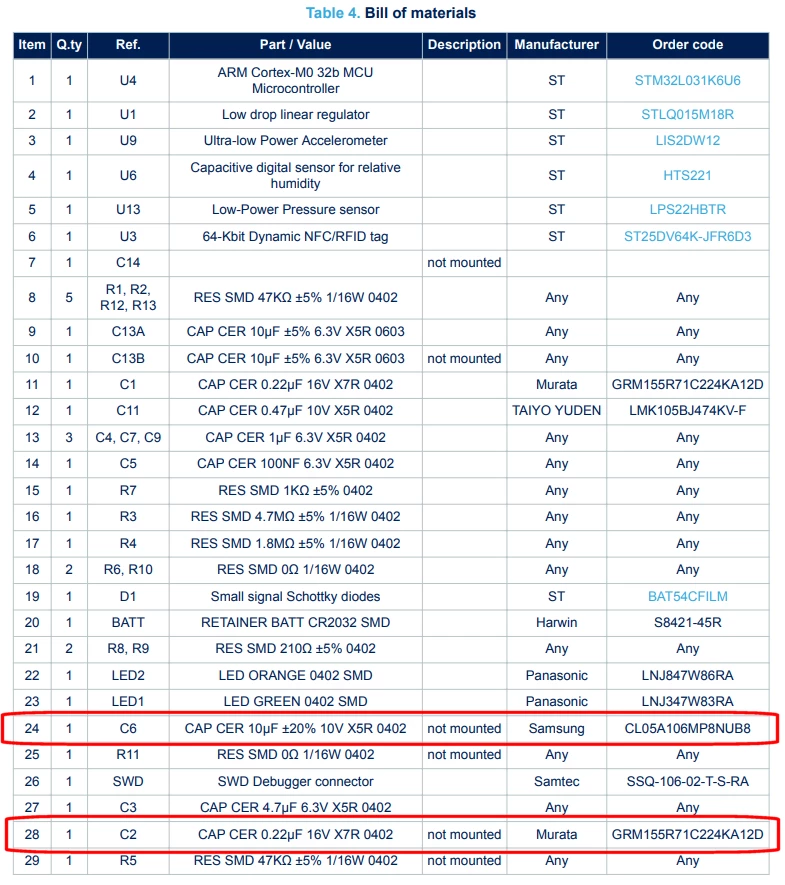

Indeed, it is stated in the Bill of Materials that these are not mounted:




@isaacseeto wrote:

 what purpose do these components serve if populated?

Presumably to accommodate different variants/revisions of the board;  eg, using a different accelerometer?

1 reply

Andrew Neil
Andrew NeilBest answer
Super User
October 3, 2024

You mean these:


https://www.st.com/resource/en/user_manual/um2427-how-to-use-the-st-nfc-sensor-tag-evaluation-board-stmicroelectronics.pdf#page=25

Indeed, it is stated in the Bill of Materials that these are not mounted:




@isaacseeto wrote:

 what purpose do these components serve if populated?

Presumably to accommodate different variants/revisions of the board;  eg, using a different accelerometer?

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
