ST25 app not reading URI from NFC01A1
- September 18, 2023
- 4 replies
- 3312 views
I am using a STM32F411RE with a X-Nucleo-NFC01A1 (with the M24SR).
From the X-CUBE-NFC1 package ( https://www.st.com/en/embedded-software/x-cube-nfc1.html ), I adapted the code to my stm32F411RE.
Below is an extract of the main.c

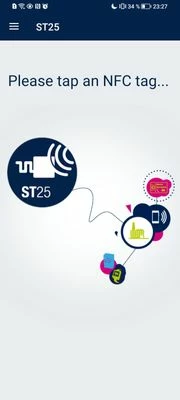

So the TT4_Init() and TT4_WriteURI() returned SUCCESS since the LED 2 and 3 turned ON, However, I can't read the NFC tag using ST25 app, neither with "NFC tools" app from PlayStore.
Is it normal? What can I provide to help?
int main(void)
{
/* USER CODE BEGIN 1 */
sURI_Info URI;
/* USER CODE END 1 */
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
/* USER CODE BEGIN 2 */
// Init of the Nucleo Board led
BSP_LED_Init(LED2);
// Init of the Nucleo Board button
BSP_PB_Init(BUTTON_KEY, BUTTON_MODE_EXTI);
// Init of the M24SR expansion board
initLED();
// Init of the Type Tag 4 component (M24SR)
// Thanks to a call to KillSession command during init no issue can occurs
// If customer modify the code to avoid Kill session command call,
// he must retry Init until succes (session can be lock by RF )
while (TT4_Init() != SUCCESS);
// Set the LED2 on to indicate Init done
HAL_GPIO_WritePin(GPIOB, GPIO_PIN_5, GPIO_PIN_SET); // led 2
// Prepare URI NDEF message content
strcpy(URI.protocol,URI_ID_0x01_STRING);
strcpy(URI.URI_Message,"st.com");
strcpy(URI.Information,"\0");
// First write NDEF
while (TT4_WriteURI(&URI) != SUCCESS);
// Set the LED3 on to indicate Programing done
HAL_GPIO_WritePin(GPIOA, GPIO_PIN_10, GPIO_PIN_SET); // led 3
/* USER CODE END 2 */
/* Infinite loop */
/* USER CODE BEGIN WHILE */
while (1)
{
/* USER CODE END WHILE */
/* USER CODE BEGIN 3 */
}
/* USER CODE END 3 */
}Here are the enabled modules from stm32f4xx_hal_conf.h. All callbacks from this file are disabled.
#define HAL_MODULE_ENABLED
/* #define HAL_CRYP_MODULE_ENABLED */
/* #define HAL_ADC_MODULE_ENABLED */
/* #define HAL_CAN_MODULE_ENABLED */
/* #define HAL_CRC_MODULE_ENABLED */
/* #define HAL_CAN_LEGACY_MODULE_ENABLED */
/* #define HAL_DAC_MODULE_ENABLED */
/* #define HAL_DCMI_MODULE_ENABLED */
/* #define HAL_DMA2D_MODULE_ENABLED */
/* #define HAL_ETH_MODULE_ENABLED */
/* #define HAL_ETH_LEGACY_MODULE_ENABLED */
/* #define HAL_NAND_MODULE_ENABLED */
/* #define HAL_NOR_MODULE_ENABLED */
/* #define HAL_PCCARD_MODULE_ENABLED */
/* #define HAL_SRAM_MODULE_ENABLED */
/* #define HAL_SDRAM_MODULE_ENABLED */
/* #define HAL_HASH_MODULE_ENABLED */
#define HAL_I2C_MODULE_ENABLED
/* #define HAL_I2S_MODULE_ENABLED */
/* #define HAL_IWDG_MODULE_ENABLED */
/* #define HAL_LTDC_MODULE_ENABLED */
/* #define HAL_RNG_MODULE_ENABLED */
/* #define HAL_RTC_MODULE_ENABLED */
/* #define HAL_SAI_MODULE_ENABLED */
/* #define HAL_SD_MODULE_ENABLED */
/* #define HAL_MMC_MODULE_ENABLED */
/* #define HAL_SPI_MODULE_ENABLED */
/* #define HAL_TIM_MODULE_ENABLED */
/* #define HAL_UART_MODULE_ENABLED */
/* #define HAL_USART_MODULE_ENABLED */
/* #define HAL_IRDA_MODULE_ENABLED */
/* #define HAL_SMARTCARD_MODULE_ENABLED */
/* #define HAL_SMBUS_MODULE_ENABLED */
/* #define HAL_WWDG_MODULE_ENABLED */
/* #define HAL_PCD_MODULE_ENABLED */
/* #define HAL_HCD_MODULE_ENABLED */
/* #define HAL_DSI_MODULE_ENABLED */
/* #define HAL_QSPI_MODULE_ENABLED */
/* #define HAL_QSPI_MODULE_ENABLED */
/* #define HAL_CEC_MODULE_ENABLED */
/* #define HAL_FMPI2C_MODULE_ENABLED */
/* #define HAL_FMPSMBUS_MODULE_ENABLED */
/* #define HAL_SPDIFRX_MODULE_ENABLED */
/* #define HAL_DFSDM_MODULE_ENABLED */
/* #define HAL_LPTIM_MODULE_ENABLED */
#define HAL_GPIO_MODULE_ENABLED
#define HAL_EXTI_MODULE_ENABLED
#define HAL_DMA_MODULE_ENABLED
#define HAL_RCC_MODULE_ENABLED
#define HAL_FLASH_MODULE_ENABLED
#define HAL_PWR_MODULE_ENABLED
#define HAL_CORTEX_MODULE_ENABLED
