Camera and LCD modules for stm32h723 mini core development board

[AAlzh.1]

Hi,

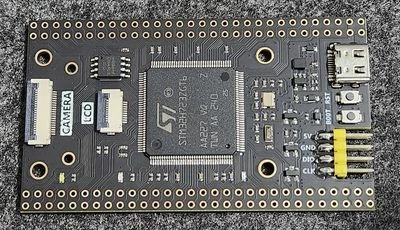

I purchased this STM32H723 mini core board that has 20 pin fpc connector for camera module and 10 pin fpc connector for LCD module.

https://www.aliexpress.com/item/1005005852859518.html?spm=a2g0o.order_list.order_list_main.10.d0bd7385STni3J&gatewayAdapt=glo2ara

I contacted the seller on Aliexpress and they told me this board works with OV2640/OV5640 modules, but they eventually told me that they don't have the items available.

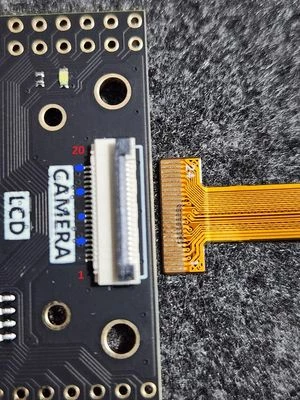

I purchased OV2640, but it turned out to have 24 pin cable.









I have 3 questions:

1. Is there an adapter solution for this ?
2. What camera module will fit this board, please provide Aliexpress product link if possible.
3. What LCD module I can connect to this board ?



[mƎALLEm]

Hello,

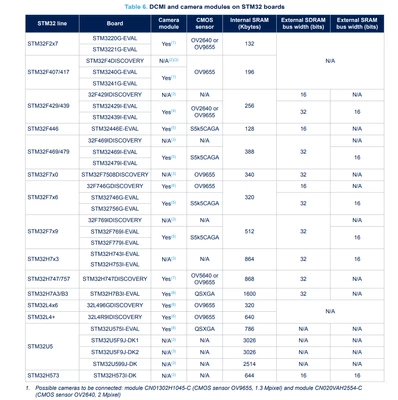

You need to contact the board's manufacturer as the connectors' pinouts are fixed. Meanwhile this is a list of camera modules that can be used in our boards (from AN5020):

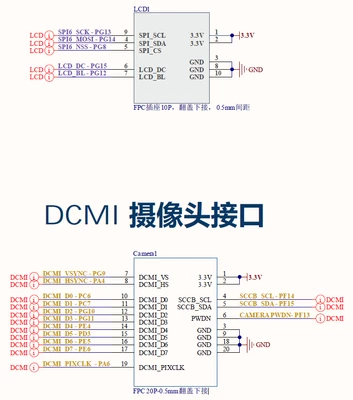

According to the schematics, you need an LCD with SPI or I2C interface but again the connectors' pinouts are fixed.

Again you need to check with board's manufacturer.

[AAlzh.1]

Yep, I think I'll eventually develop my custom SPI/I2C interface to connect LCD with FFC cable.

[ajevtic]

Hi @AAlzh.1, unrelated to the topic but could you please provide a link to the schematic (documentation in general) of the board? I can not find it anywhere.

Many thanks for your help!





[AAlzh.1]

Hi .. I got it from the seller.

That's the best they could help me with. I'm trying to develop a way to run the camera using adapter board for 20 pins then I hope to find a library for the camera using SPI if things worked as expected.

[ajevtic]

Hi @AAlzh.1, likewise, it is a nice board. For me I want to try out Micropython on it.

Many thanks for your help and kindness! Good luck with the project!

[Tesla DeLorean]

Several vendors sell the FK723M1-VGT6 boards

https://www.aliexpress.com/i/3256805796188457.html?gatewayAdapt=4itemAdapt
