Getting Started with X-NUCLEO-PLC01A1 for Nucleo Board F767Zi

[Abdelwaly]

Hello,

I have ordered a X-NUCLEO-PLC01A1 for my Nucleo Board F767Zi.

I should receive it soon but I would like to understand it as much as possible.

This is why I try to find some example projects but I cannot find any.

In addition, I have tried to download X-CUBE-PLC1 extension from this link  https://www.st.com/en/embedded-software/x-cube-plc1.html but it seems that the extension is not available anymore.



Please could you help me to get started with this X-NUCLEO-PLC01A1.

Thank you

[Andrew Neil]

---

@Abdelwaly wrote:

I have tried to download X-CUBE-PLC1 extension from this link  https://www.st.com/en/embedded-software/x-cube-plc1.html but it seems that the extension is not available anymore.

---

What makes you say that?

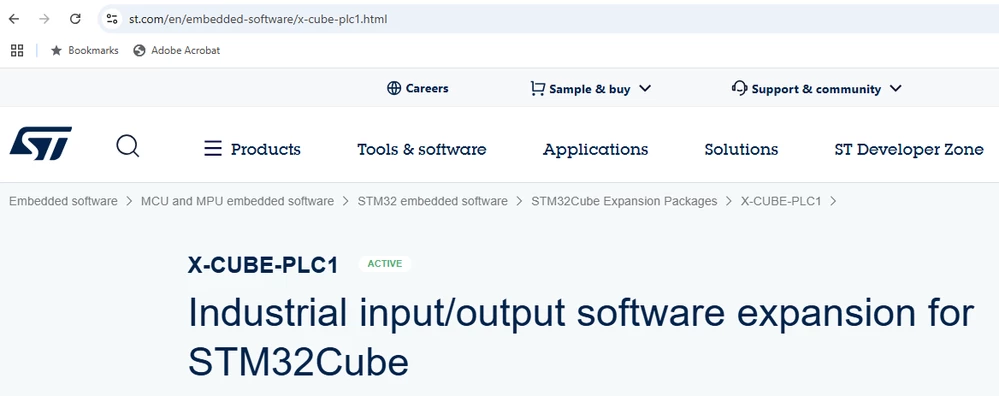

It says it's still Active:



PS:

While you're waiting for the board, also checkout the Product Pages for the chips:

https://www.st.com/en/power-management/vni8200xp.html

https://www.st.com/en/protections-and-emi-filters/clt01-38sq7.html

[Abdelwaly]

Hello Andrew, thank you for answering and for the content you have shared.

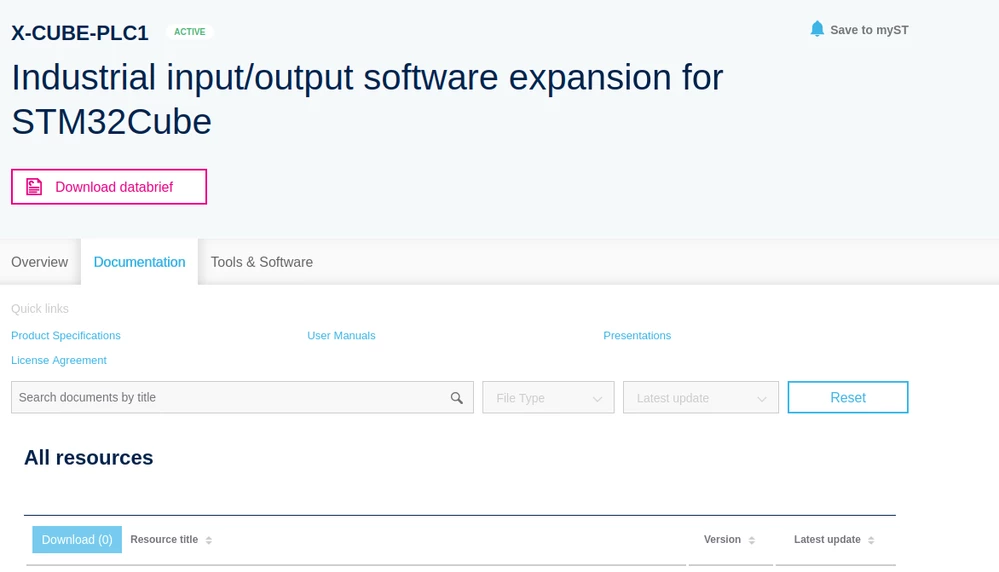

I say this because when you look at the content, you see that there is no extension to download (Download(0))

---

@Andrew Neil wrote:

---

@Abdelwaly wrote:

I have tried to download X-CUBE-PLC1 extension from this link  https://www.st.com/en/embedded-software/x-cube-plc1.html but it seems that the extension is not available anymore.

---

What makes you say that?

It says it's still Active:

---

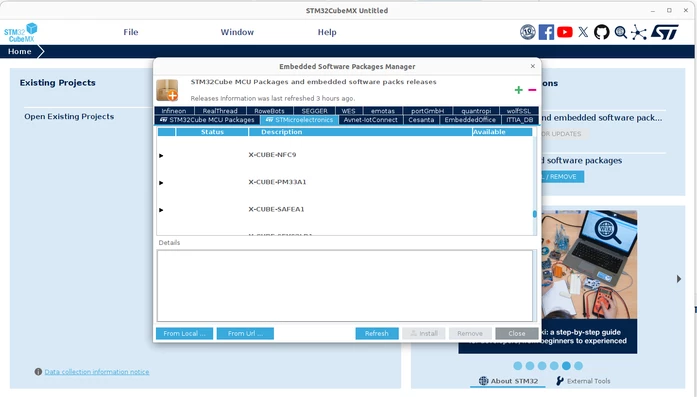

I have also checked on STM32CubeMX, I was unable to find the extension :



If it is still active, do you know where I can find the extension ?

Moreover, do you know where I can find project examples ?

Thank you

[matthewmontgomery348]

Hi there, Did you ever get this issue sorted? I am having issues getting the expansion package to work. Thanks
