If I dont use SMPS in STM32H757xI how connect VLXSMPS

[Ronil]

Hello, in my plan, I want to use a standart power supply (LDO) for STM32H757xI in package  WLCSP156.

In the manual for STM32H757xI I didn't find any information on how it should be connected

Is it correct ?

VLXSMPS (GND)

VFBSMPS (GND)

VSSDSI (GND)

VSSSMPS (GND)

VDDSMPS (GND)



[Andrew Neil]

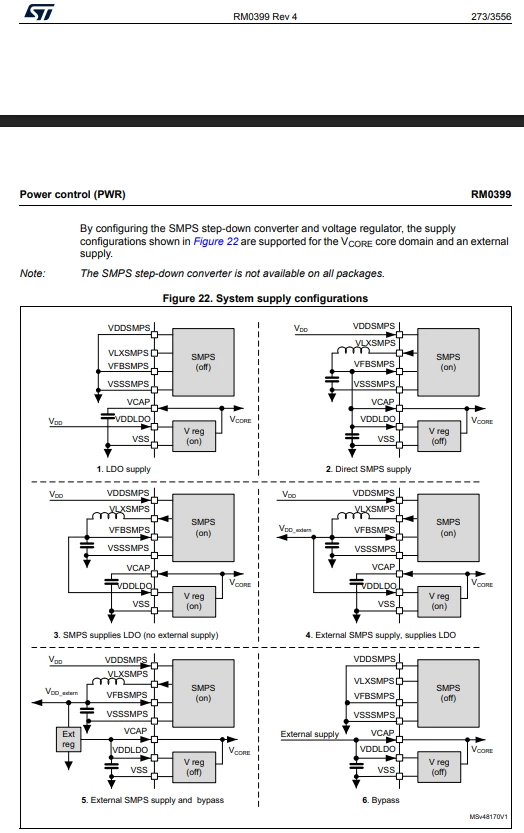

https://www.st.com/resource/en/reference_manual/rm0399-stm32h745755-and-stm32h747757-advanced-armbased-32bit-mcus-stmicroelectronics.pdf#page=274



See also AN4938, Getting started with STM32H74xI/G and STM32H75xI/G MCU hardware development:

https://www.st.com/resource/en/application_note/an4938-getting-started-with-stm32h74xig-and-stm32h75xig-mcu-hardware-development-stmicroelectronics.pdf



via: https://www.st.com/en/microcontrollers-microprocessors/stm32h757xi.html#documentation
