Nucleo-64 3D printed base

[QuickSilver]

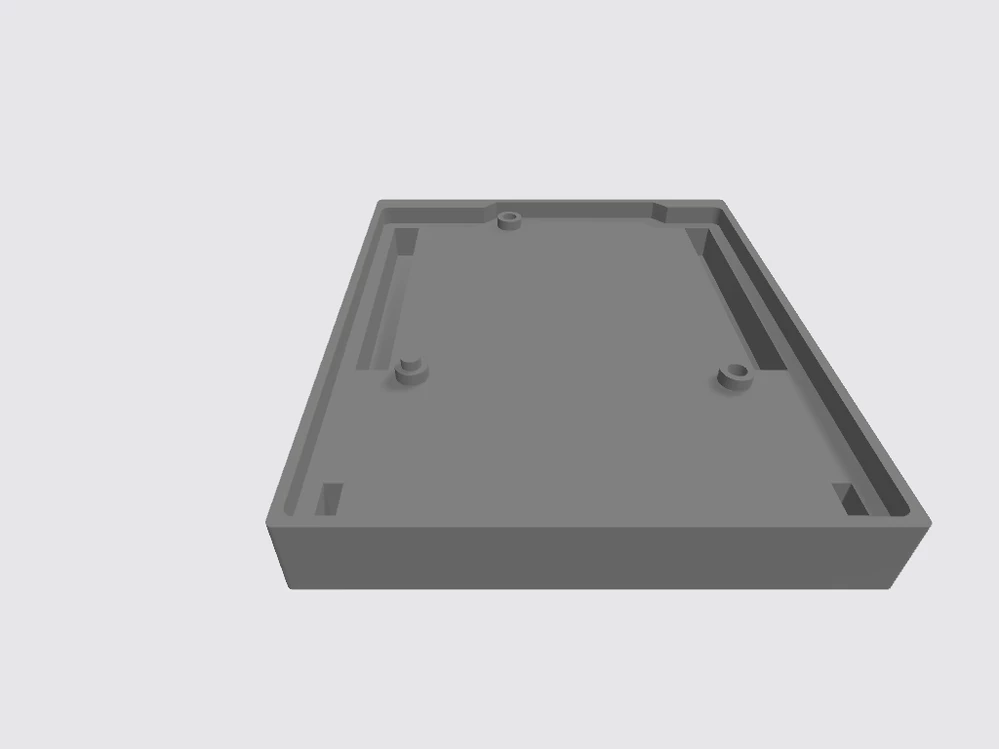

I created this 3d printable base for the Nucleo-64 boards, to avoid damage to the bottom pin headers, reduce the risk of short circuits and as a convenient support during the prototyping and development process. I share it here hoping someone else will find it useful.

STL download link: https://grabcad.com/library/st-nucleo-64-development-board-base-1



[STTwo-32]

Hello @QuickSilver

Very good idea. Thank you for sharing this on the Community ☺️. May our Community members find it helpful.

Best Regards.

STTwo-32

[QuickSilver]

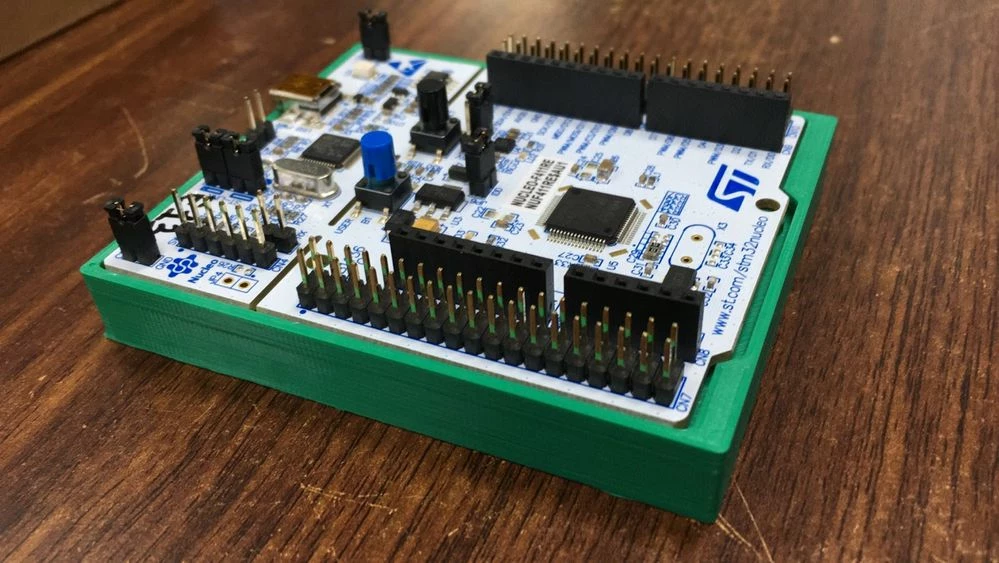

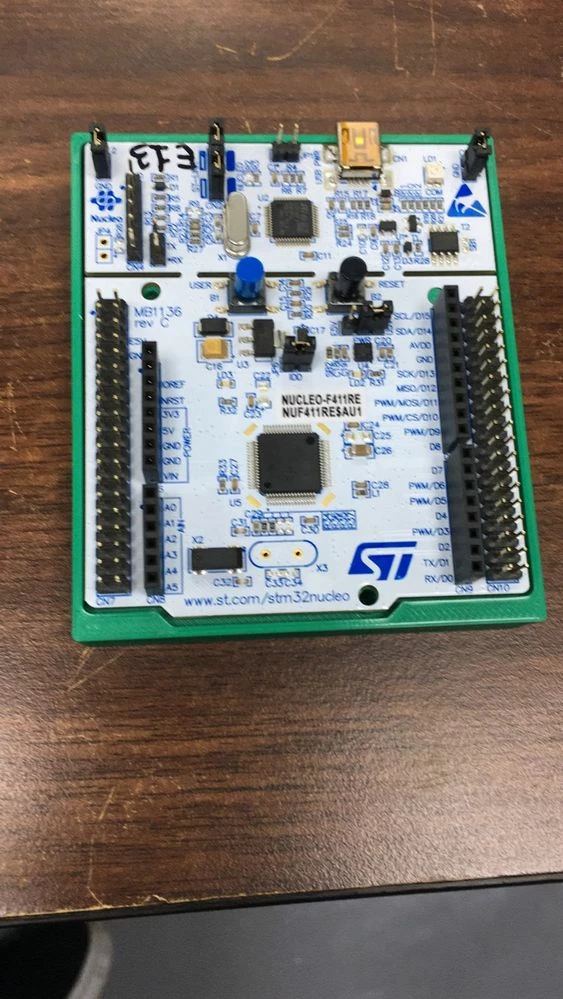

Some pictures of one board mounted on the base.

[gbm]

My stuff, slightly different, is here - one for Nucleo-64, another one for Nucleo-144:

https://www.thingiverse.com/thing:2918243

https://www.thingiverse.com/thing:2918257
Just stands, not solid cases with walls around, so they are weaker but print much faster.



[QuickSilver]

Wow, nice. Thanks for sharing.
