NUCLEO-C051C8 : ST-link is not detected on windows Desktop

[rudreshjoshi]

Hi ,

Recently I got a NUCLEO-C051C8 board and tried to connect it to windows and program it using STm32CubeIDE but it does not show that st-link is connected , ST-link on board blinks RED continuously.

Cant install it ( installation goes through , but cant see it in device manager ) using stsw-link009

( https://www.st.com/en/development-tools/stsw-link009.html?dl=redirect )

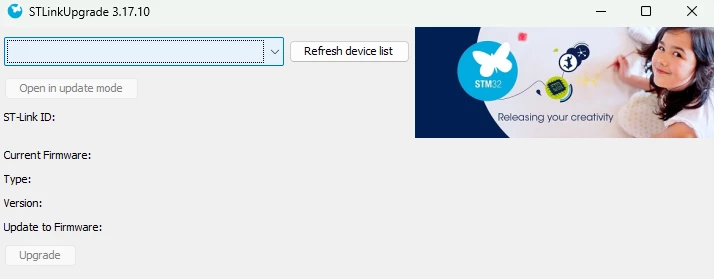

Cant connect using STM32CubeProgrammer.

Tried 2 USb cables , various ports of pc but  in vain.

Can someone please help ?





[TDK]

Blinking red LED means it's not enumerating. Usually due to using a power-only USB cable. Try a different USB cable or a different USB port.

Even if drivers aren't installed, something should show up in device manager as an unknown device.

[KDJEM.1]

Hello @rudreshjoshi and welcome to the community;



Could you please take a look at this article How to solve connection errors when connecting and programming the STM32 target board may help you to solve the issue.



Thank you

Kaouthar

[Andrew Neil]

As @TDK said, try a different cable - make sure it's one that actually gives a data connection with other devices.

More things to try here.

[rudreshjoshi]

Thanks , I am able to make it work now.
Seems like I had to remove Jumpers from CN-2 and it did usb enumaration ( Red LED went steady ).

Thanks a lot for your help.



thanks & warm regards,

~ Rudresh
