NUCLEO H533RE Pin map

  • September 23, 2025
  • 2 replies
  • 715 views

Where can I find the pinout of NUCLEO H533RE?

Best answer by mƎALLEm

Hello,

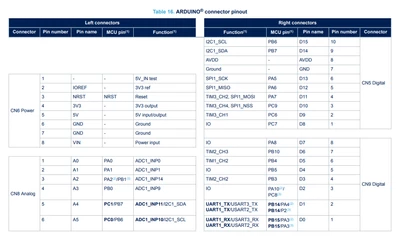

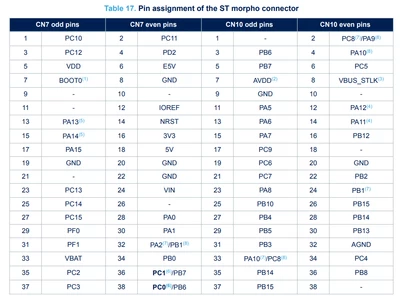

In UM3121 Table 16 and Table 17:




2 replies

mƎALLEm
mƎALLEmBest answer
Technical Moderator
September 23, 2025

Hello,

In UM3121 Table 16 and Table 17:




"To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question."
    Andrew Neil
    Andrew Neil
    Super User
    September 23, 2025
    @wwnsok2 wrote:

    Where can I find the pinout of NUCLEO H533RE?

    Go to the Product Page for the board:

    https://www.st.com/en/evaluation-tools/nucleo-h533re.html

    Look on the 'Documentation' tab:

    https://www.st.com/en/evaluation-tools/nucleo-h533re.html#documentation

    There you will find the User Manual - as @mƎALLEm said.



    Also, on the 'CAD Resources' tab, you will find the schematics:

    https://www.st.com/en/evaluation-tools/nucleo-h533re.html#cad-resources
