STLINK-V3PWR to Nucleo board SWD

[NicRoberts]

Hi,

I am trying to link up a Nucleo-F411RE board to a STLINK-V3PWR unit via the SWD (CN6) header.

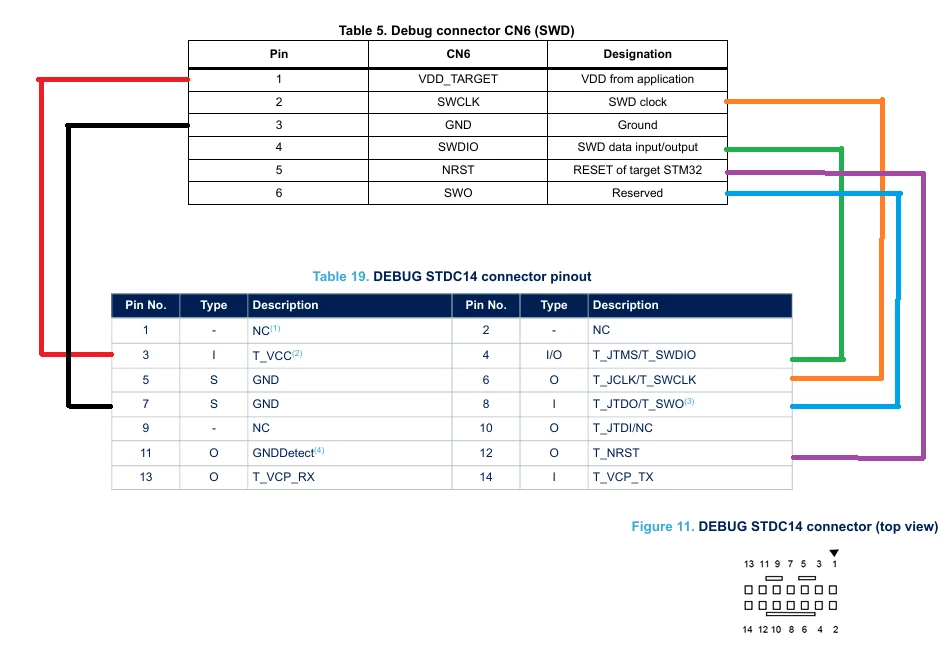

I am going to make a breakout board for the connector. See image below, I am assuming that I do not have to connect T_VCP_RX and T_VCP_TX to anything on the Nucleo board, am I right?

[Andrew Neil]

---

@NicRoberts wrote:

I am trying to link up a Nucleo-F411RE board to a STLINK-V3PWR unit via the SWD (CN6) header.

---

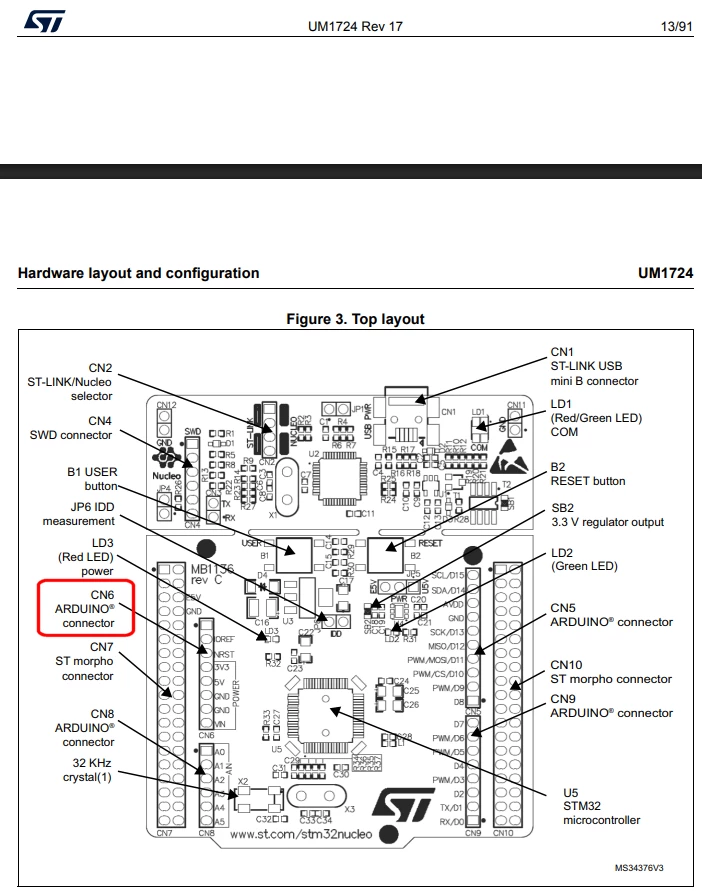

On a Nucleo-F411RE board (MB1136), CN6 is the Arduino power header - not SWD:

https://www.st.com/resource/en/user_manual/um1724-stm32-nucleo64-boards-mb1136-stmicroelectronics.pdf#page=14

via: https://www.st.com/en/evaluation-tools/nucleo-f411re.html#documentation



Did you mean CN2, or CN4 ?

Don't forget that you will need to disconnect the built-in ST-Link before using an external one.

The CN2 jumpers disconnect the SWD lines, but not NRST.



---

@NicRoberts wrote:

I am assuming that I do not have to connect T_VCP_RX and T_VCP_TX to anything on the Nucleo board,

---

So long as you don't want to use the VCP functions
