STM32F4DISCOVERY vs STM32F407G-DISC1 are same?

[dheerajpk]

I bought STM32F4DISCOVERY. But in the STMcube IDE, i see only STM32F407G-DISC1 board.

• Are STM32F4DISCOVERY vs STM32F407G-DISC1 same?
• Can I select STM32F407G-DISC1 and create a project in the IDE and use STM32F4DISCOVERY hardware to run the project? Will it create any issues?

[TDK]

Yes, they are one and the same.

https://www.st.com/en/evaluation-tools/stm32f4discovery.html





[Andrew Neil]

---

@TDK wrote:

Yes, they are one and the same.

---

Are they?

Didn't the original one not have the VCP in the ST-Link?



[KDJEM.1]

Hello @dheerajpk and welcome to the community;



The new order code STM32F407G-DISC1 replaces STM32F4DISCOVERY.

The STM32F407G-DISC1 with ST-LINK/V2-A replaces the obsolete STM32F4DISCOVERY order code with ST-LINK/V2.

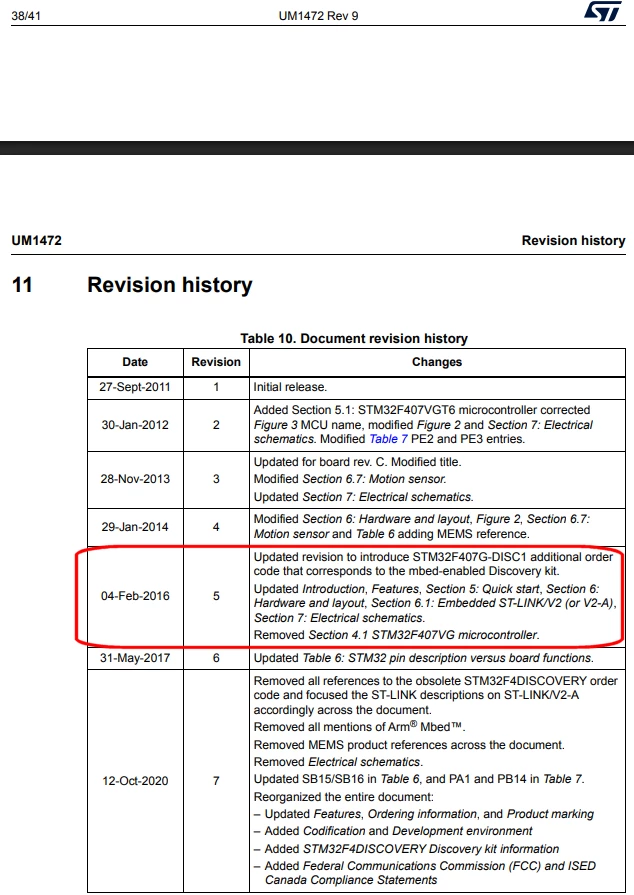

For more information; I Recommend you to look at Discovery kit with STM32F407VG MCU - User manual section 8.2 STM32F4DISCOVERY product history.



Thank you.

Kaouthar
